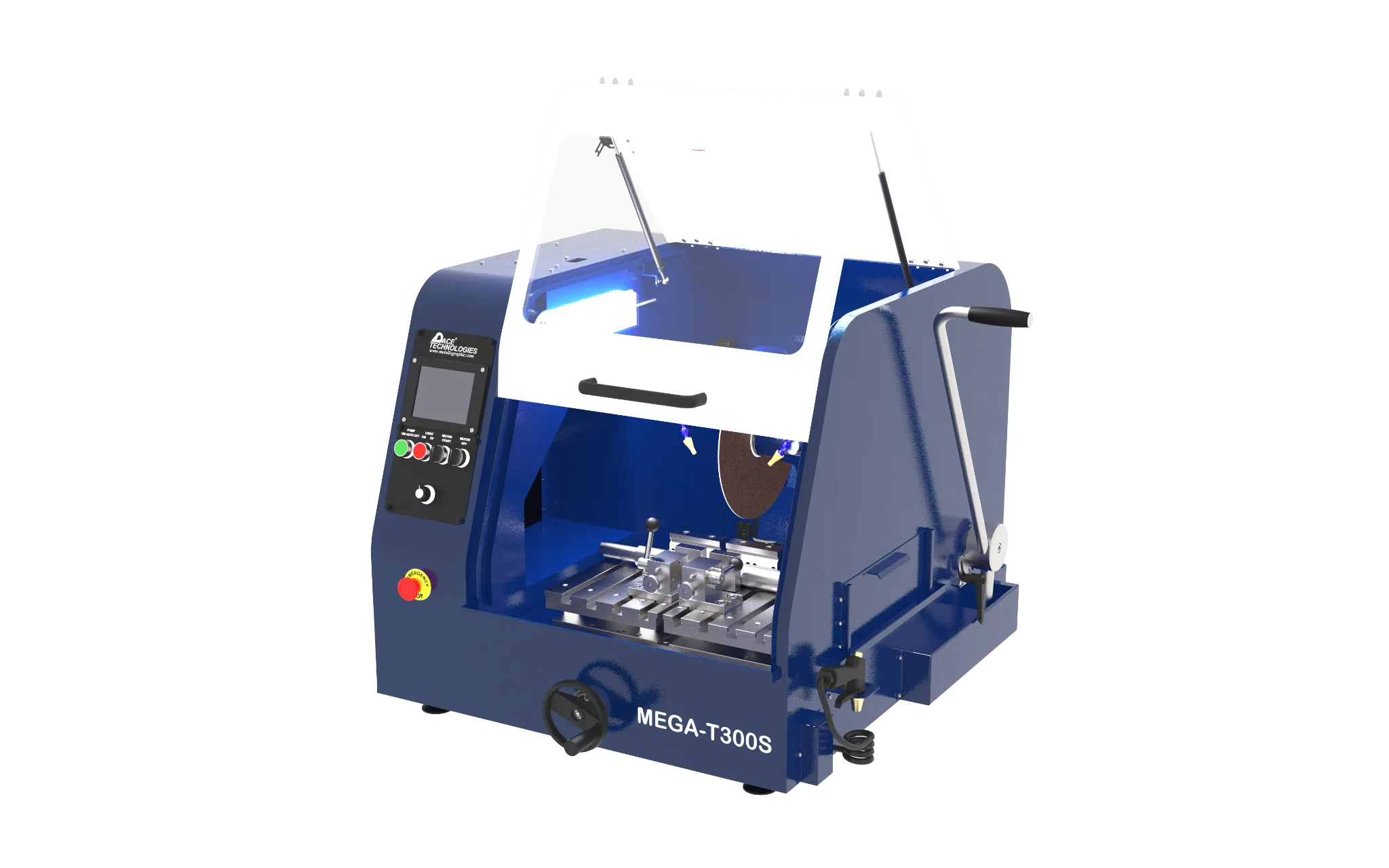

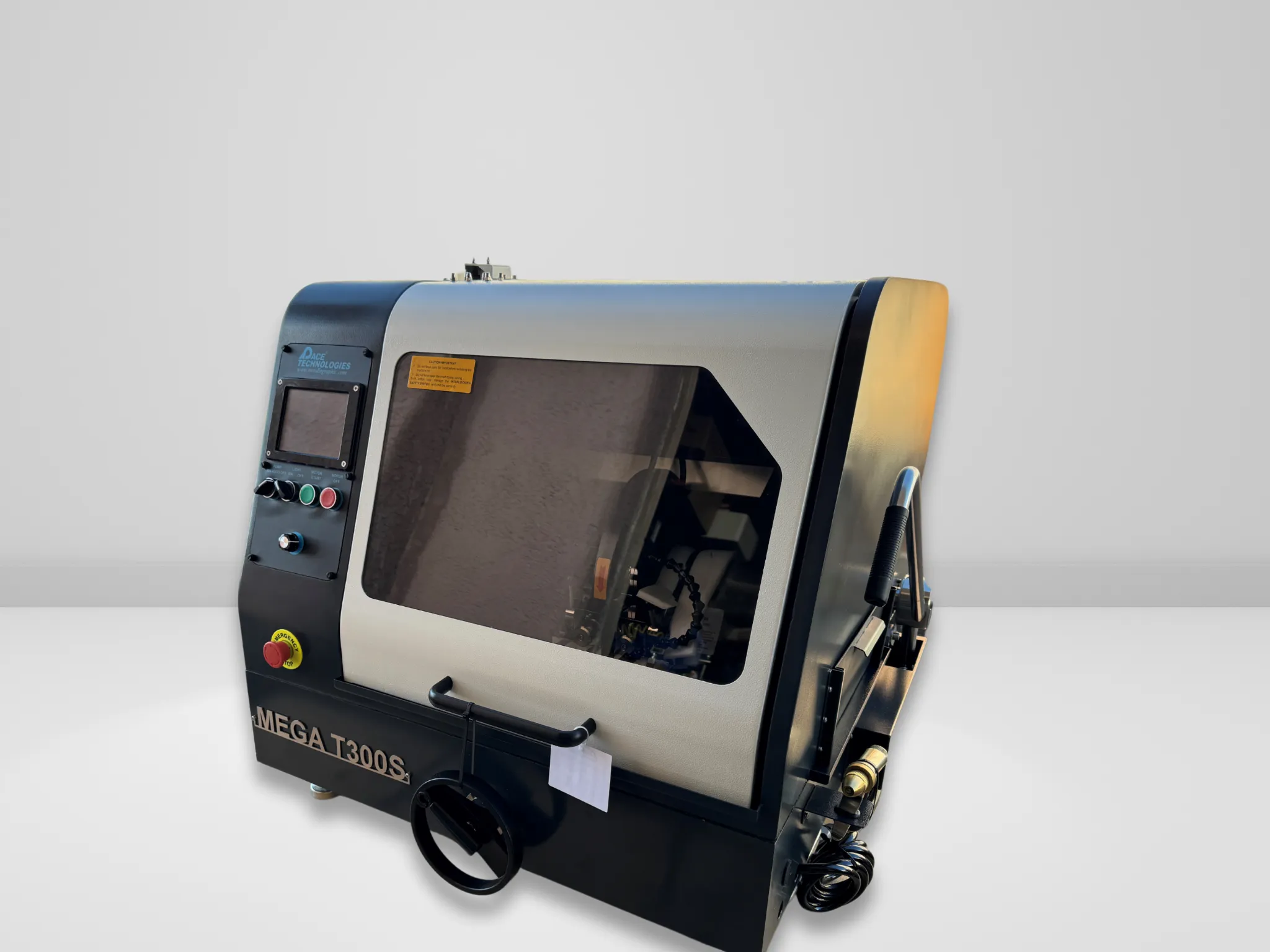

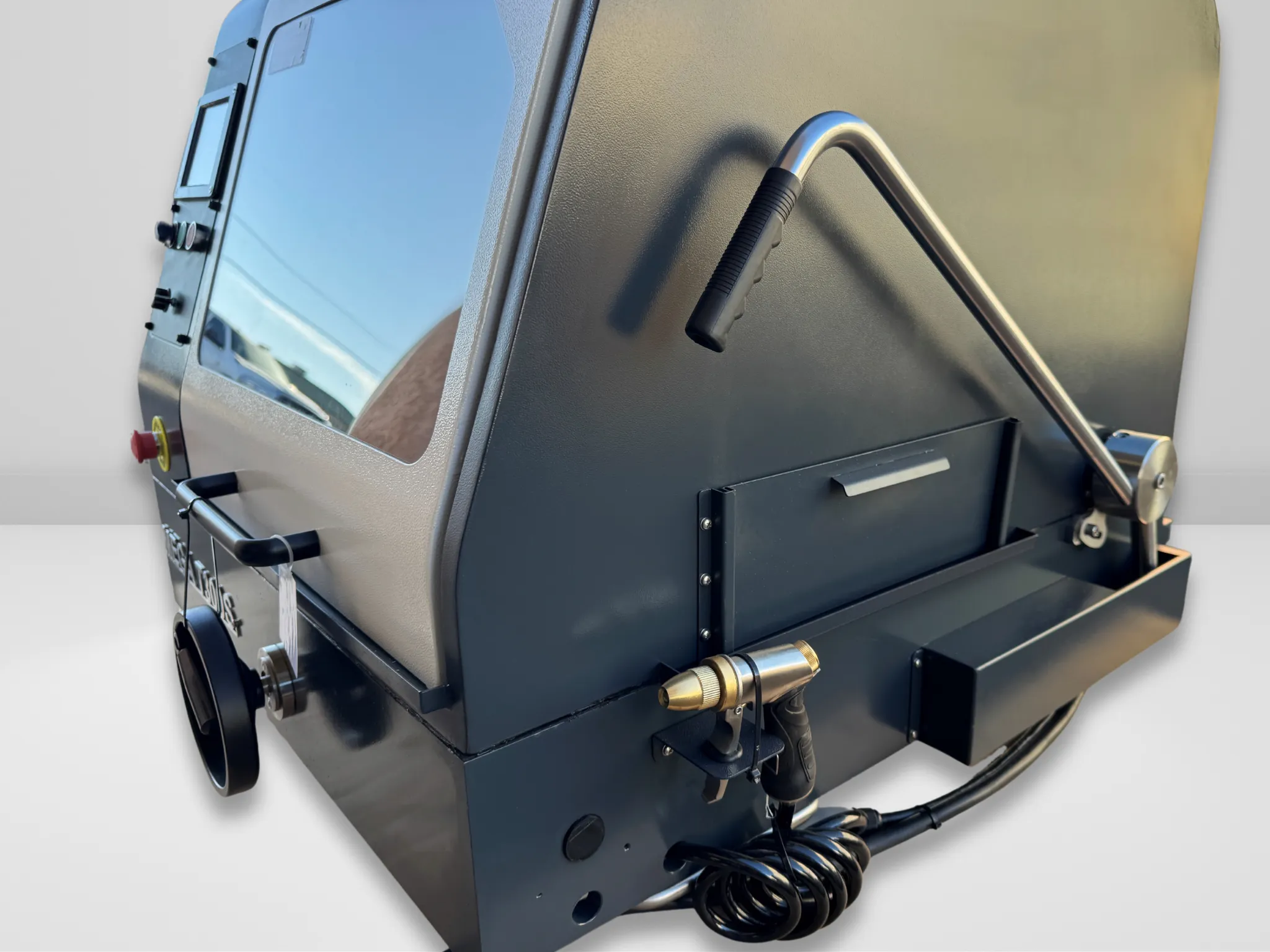

MEGA-T300S Manual Abrasive Cutter
The MEGA-T300S Abrasive Cutter by PACE Technologies offers precise manual cutting with a 12-inch blade and powerful servo motor. Its manual controls allow fine adjustments for detailed sample preparation. A T-slotted table and adjustable cutting forces ensure stability and accuracy.
Features
- Manual operation for precise control over cutting

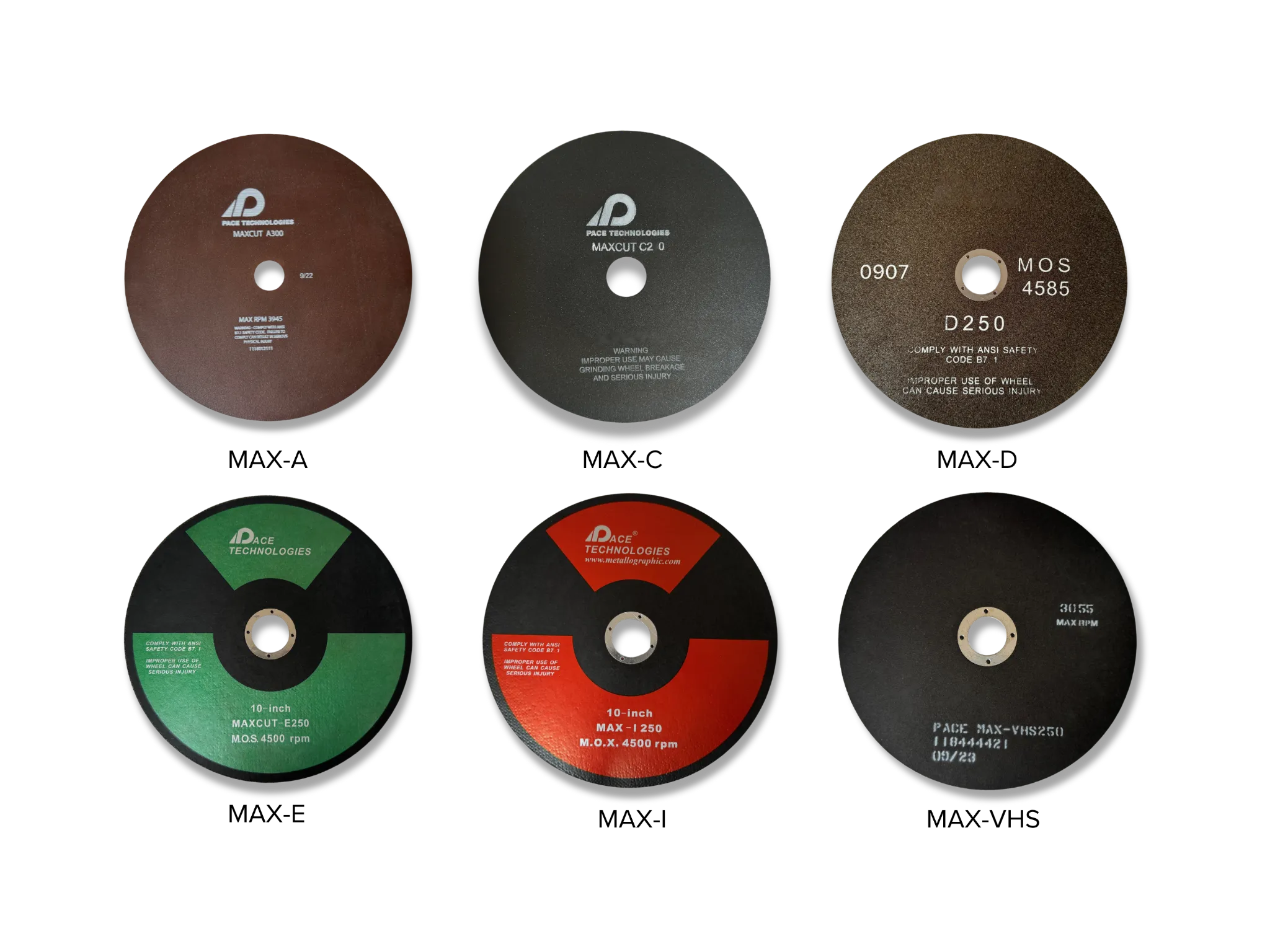

- Equipped with a 12-inch (305 mm) blade for versatile cutting applications
- Powerful 4.5 kW variable speed servo motor for efficient performance
- Manual table and wheel feed for customizable cutting processes
- Stable T-slotted table for secure material placement
Technical Specifications - MEGA-T300S
| Parameter | Specification |
|---|---|
| Cut-off Blade Size | 12-inch (305 mm) |
| Operation | Manual |
| Screen | Non-touch |
| Arbor Size | 32 mm |
| Cutting Capacity (H x D) | Maximum 3 x 8-inch (70 x 200 mm) |
| Max Cutting Diameter | 4-inch (100 mm) |
| Wheel Feed | Manual |
| Table Feed | Manual |
| Y Pulse Feed | Manual |
| Y-axis Table Feed Range | 7-inch (180 mm) |
| Vertical Movement (Z-axis) | 7-inch (175 mm) |
| T-slotted Table Dimensions | 11 x 18.25-inch (280 x 470 mm) |
| T-slotted Width | 0.5-inch (50 mm) |
| Cooling Unit | 14 gallons (53 liters) |
| Motor Power | 4.5 kW (5.8 hp) Variable Speed Servo Motor |
| Motor Speed | Variable (1500-3500 rpm) |
| Cutting Force (Current Settings) | 3-15 amps (208Y/380V), 5-25 amps (480V) |
| Electrical Specification | 208Y / 380V or 480V 3-phase (50/60 Hz) |

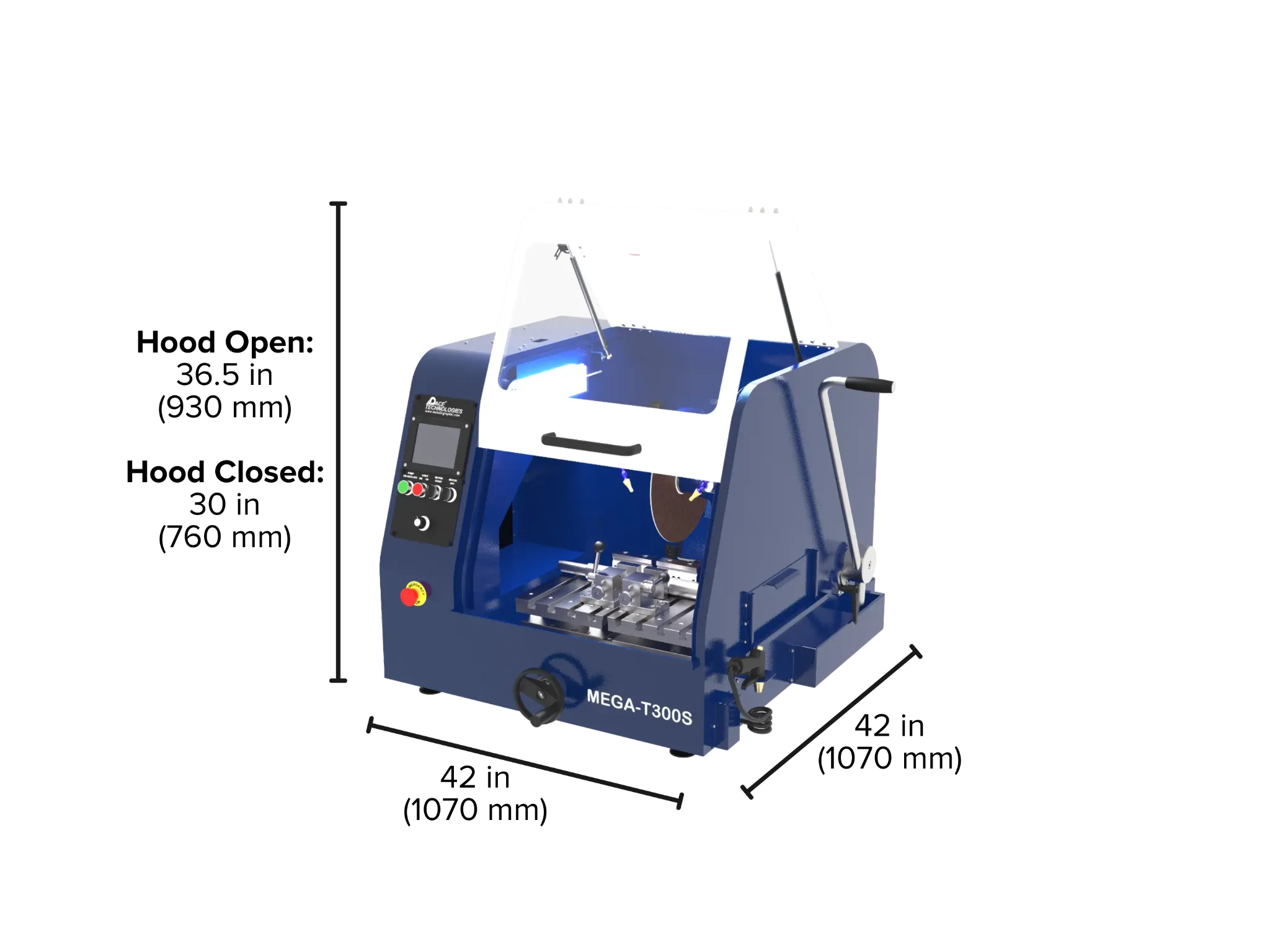

| Dimensions (WxDxH) - Hood Closed | 42 x 42 x 30-inch (1070 x 1070 x 760 mm) |
| Dimensions (WxDxH) - Hood Open | 42 x 42 x 36-inch (1070 x 1070 x 930 mm) |
| Weight | 500-550 lbs (230-250 kg) |
| Cutter Support Bench (Optional) | MEGA-T3-BENCH |
| Catalog Number | MEGA-T300S |
