Metallurgical Microscopes
Our metallurgical microscopes support accurate microstructural evaluation from routine inspection to advanced analysis. The IM-3000B is an economical, durable option for everyday work, offering brightfield and polarized light with reliable plan achromatic optics. The IM-5000 expands capability with darkfield and Differential Interference Contrast (DIC) illumination for improved contrast and feature visibility. The new IM-7000 delivers the highest performance, combining advanced illumination modes with premium long working distance LM Plan S-APO objectives, ultra-wide field eyepieces, and LED illumination for exceptional resolution, color accuracy, and digital imaging performance.

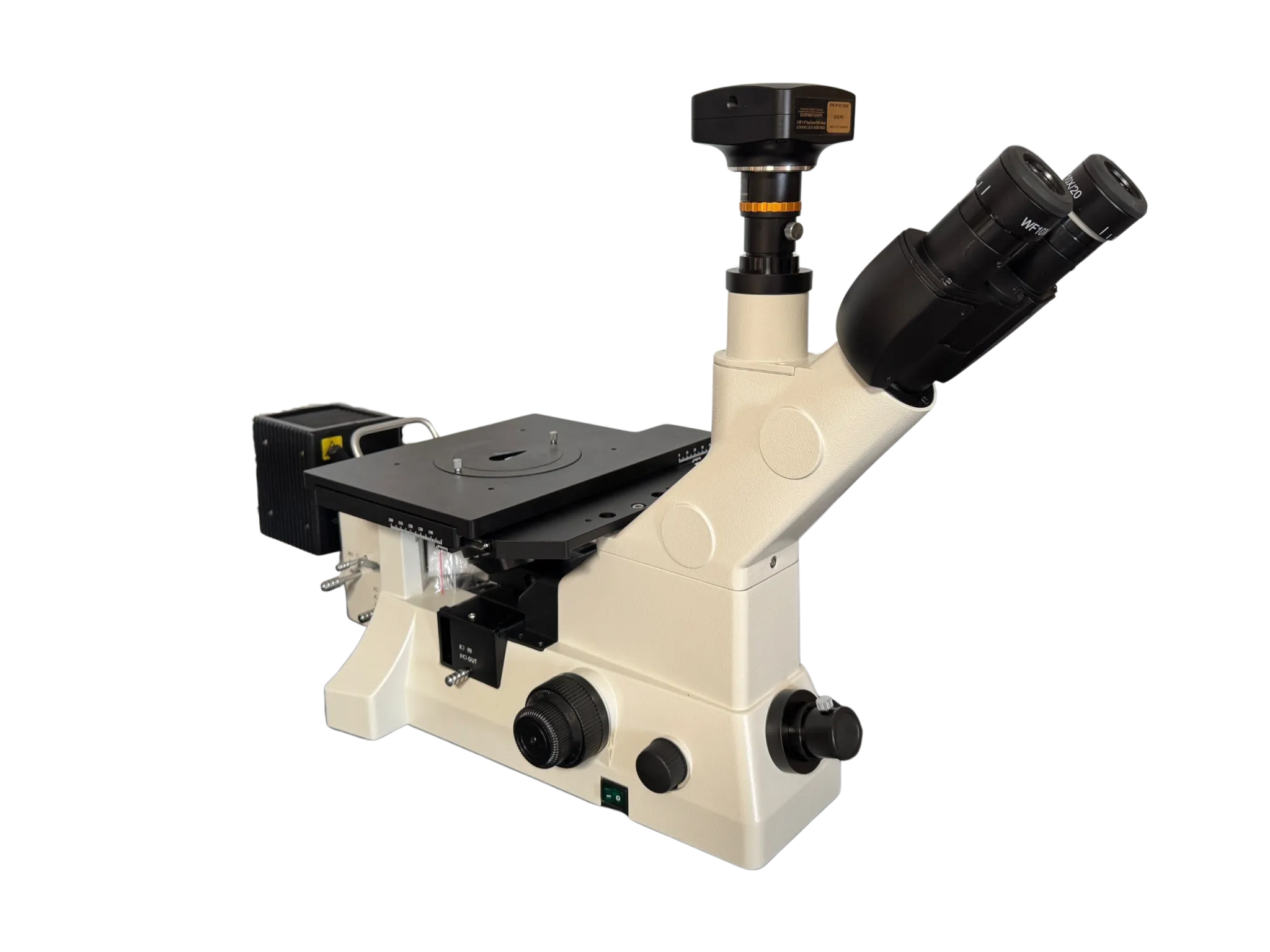

IM-3000B Inverted Metallurgical Microscope
Features
- Wide Field Eyepiece: Provides a wide field of view with WF10X eyepiece.
- High-Quality Objectives: Equipped with Infinite Plan Achromatic objectives ranging from 5X to 100X.
- Flexible Trinocular Head: Inclined 30 degrees for comfortable use.
- Advanced Illumination: Features a 12V/50W halogen lamp with color filters for enhanced visibility.
Technical Specifications - IM-3000B
| Parameter | Specification |
|---|---|
| Eyepiece | Wide field WF10X (Field No. 20mm) |
| Objectives (Mag/N.A.) |

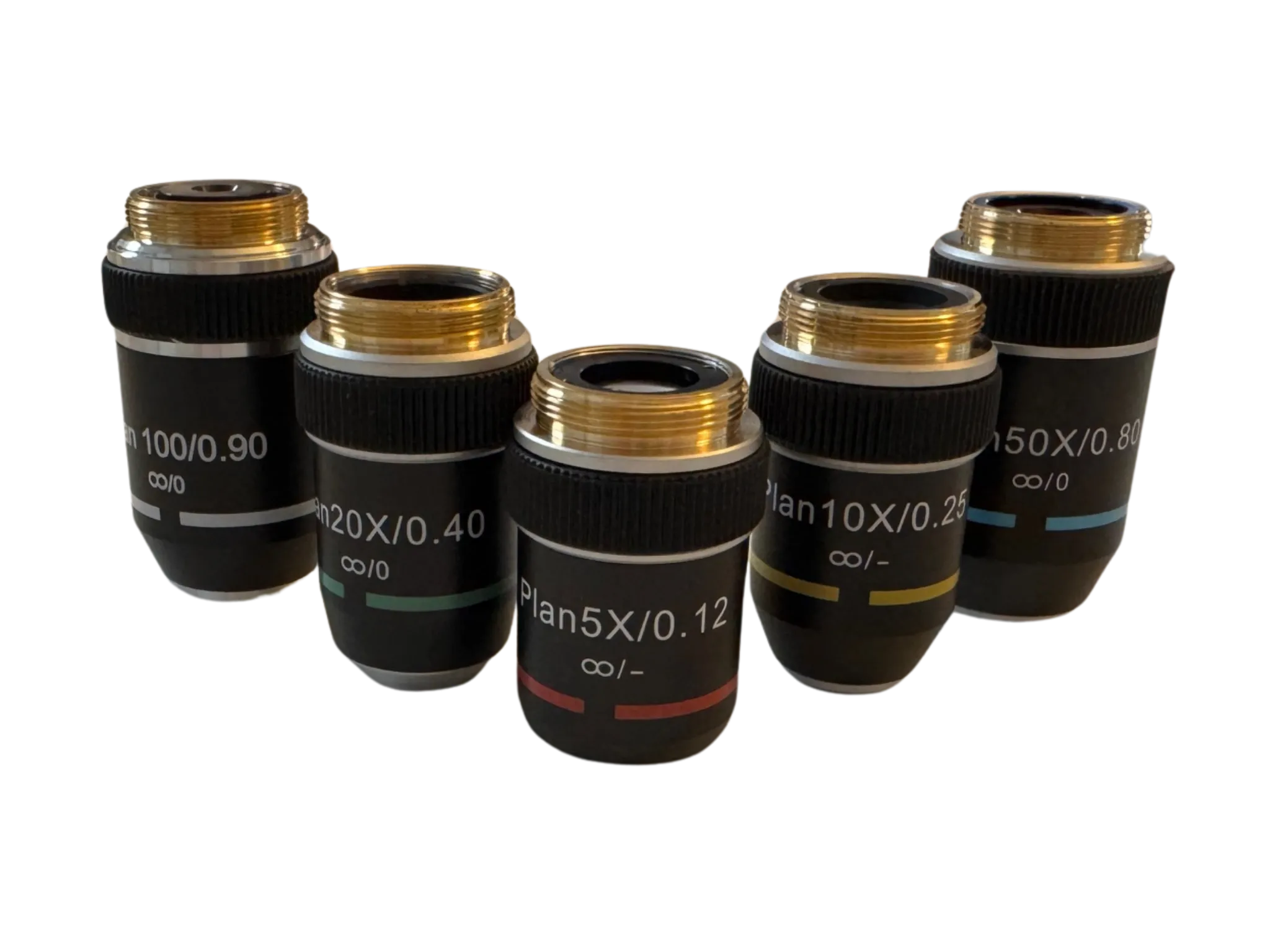

Infinite Plan Achromatic 5X/0.12 Infinite Plan Achromatic 10X/0.25 Infinite Plan Achromatic 20X/0.40 Infinite Plan Achromatic 50X/0.80 Infinite Plan Achromatic 100X/0.90 (optional) |
| Objectives (Mag/Working Distance) |
PL L5X/0.12 (working distance 10 mm) PL L10X/0.25 (working distance 10 mm) PL L20/0.40 (working distance 5 mm) PL L50X/0.70 (working distance 1.3 mm) PL L100X/0.90 (working distance 0.7 mm) |
| Trinocular Head | Inclined 30 degrees, interpupillary distance 48-75 mm |
| Focusing System | Coaxial coarse/fine focus |
| Nosepiece | Quintuple |
| Mechanical Stage | X-Y mechanical stage |
| Illumination | 6V/30W Halogen Lamp |
| Color Filters | Grey, Blue, and Green |
| Diffuser | Ground Glass | Catalog Number | IM-3000B |
IM-5000 Inverted Metallurgical Microscope
Features
- Advanced Illumination Options: Offers brightfield, darkfield, polarized light, and DIC illumination.
- Wide Field Eyepiece: Provides a wide field of view with WF10X eyepiece.
- High-Quality Objectives: Equipped with PL L5X to PL L100X objectives for versatile imaging.
- Trinocular Eyepiece Tube: Allows for flexible observation and photography with a 45-degree inclination.
Technical Specifications - IM-5000
| Feature | Specifications |
|---|---|
| Eyepiece | Wide field WF 10X (field no. 22 mm) |
| Objectives |

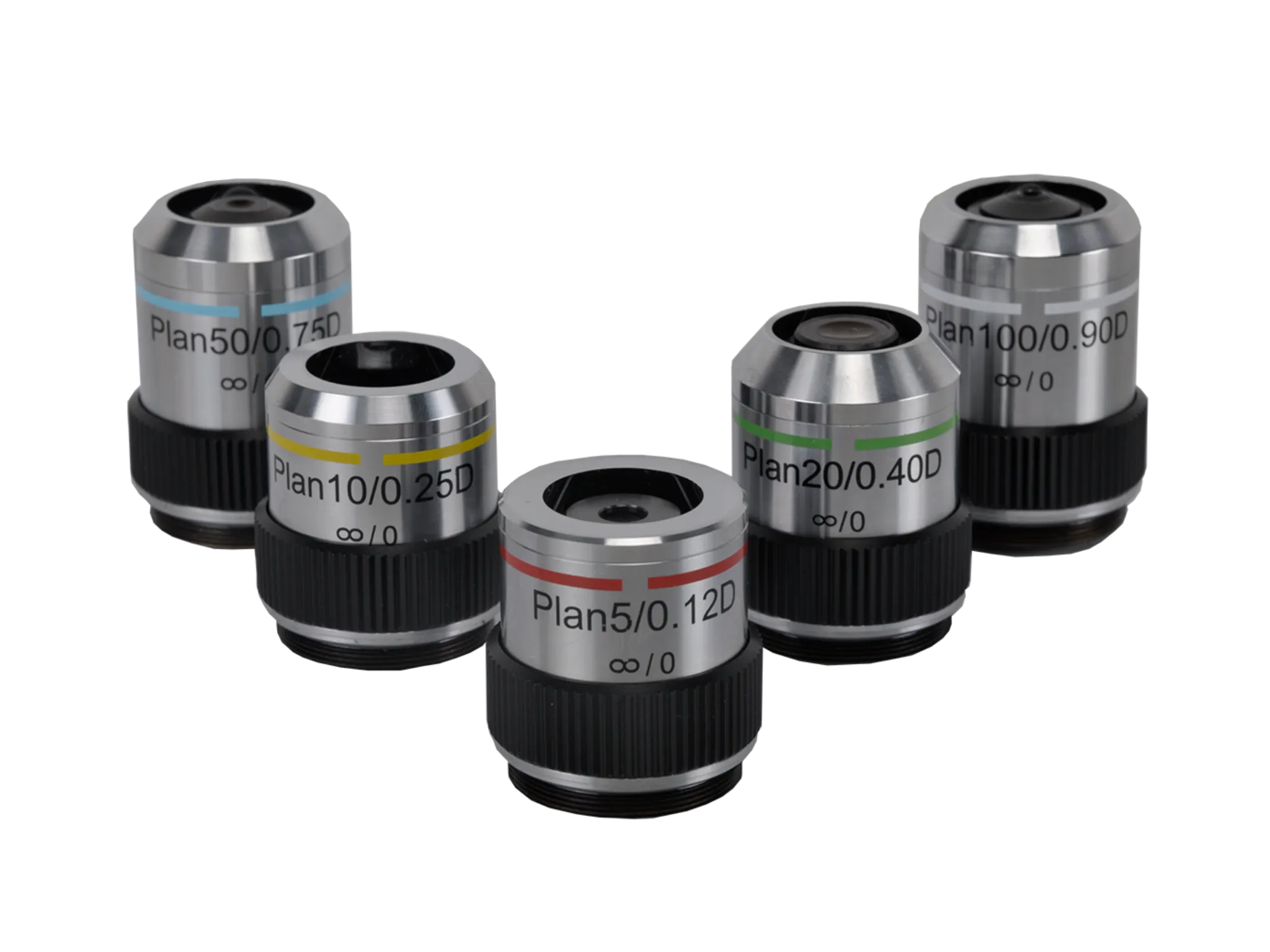

PL L5X/0.12 BD (working distance 10 mm) PL L10X/0.25 BD (working distance 10 mm) PL L20/0.40 BD (working distance 5 mm) PL L50X/0.70 BD (working distance 1.3 mm) PL L100X/0.90 BD (working distance 0.7 mm) |
| Eyepiece Tube |
Trinocular, 45 degree inclimation ratio Observation: 80%, photo 20% |
| Focusing System |
Coaxial coarse/fine focus (2 micron) Travel (stage to focal plane) up 1 mm, down 7 mm |
| Nosepiece | Quintuple |
| Mechanical Stage |
X-Y stage Travel range: 1.6x1.6-inches (40 x 40 mm) |
| Size | 8.9 x 7-inch (226x178 mm) |
| Illumination | 12V/50W Halogen Lamp |
| Color Filters | Grey, Blue, and Green |
| Diffuser | Ground glass |
| Catalog Number | IM-5000 |

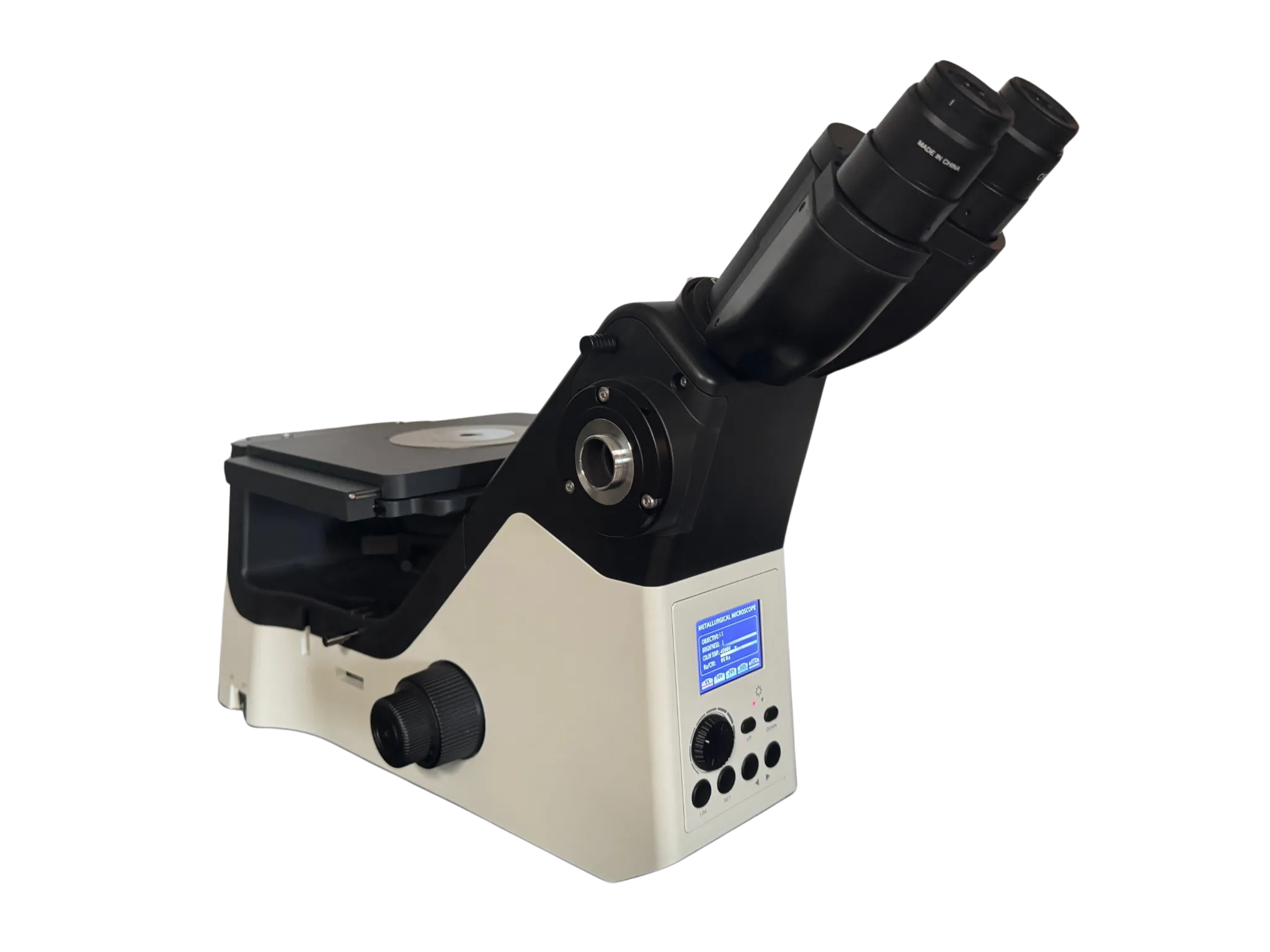

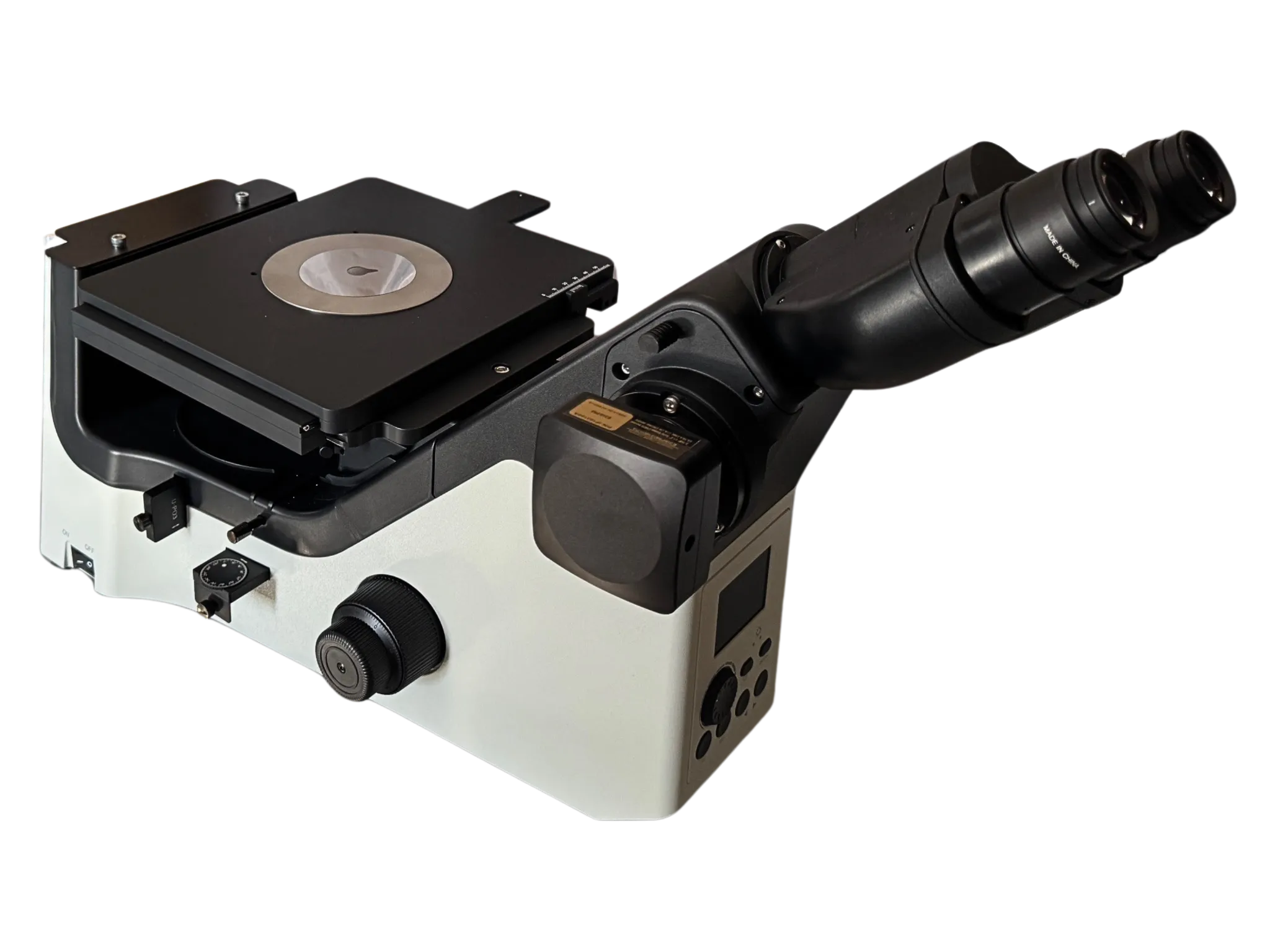

IM-7000 Premium Inverted Metallurgical Microscope
Features

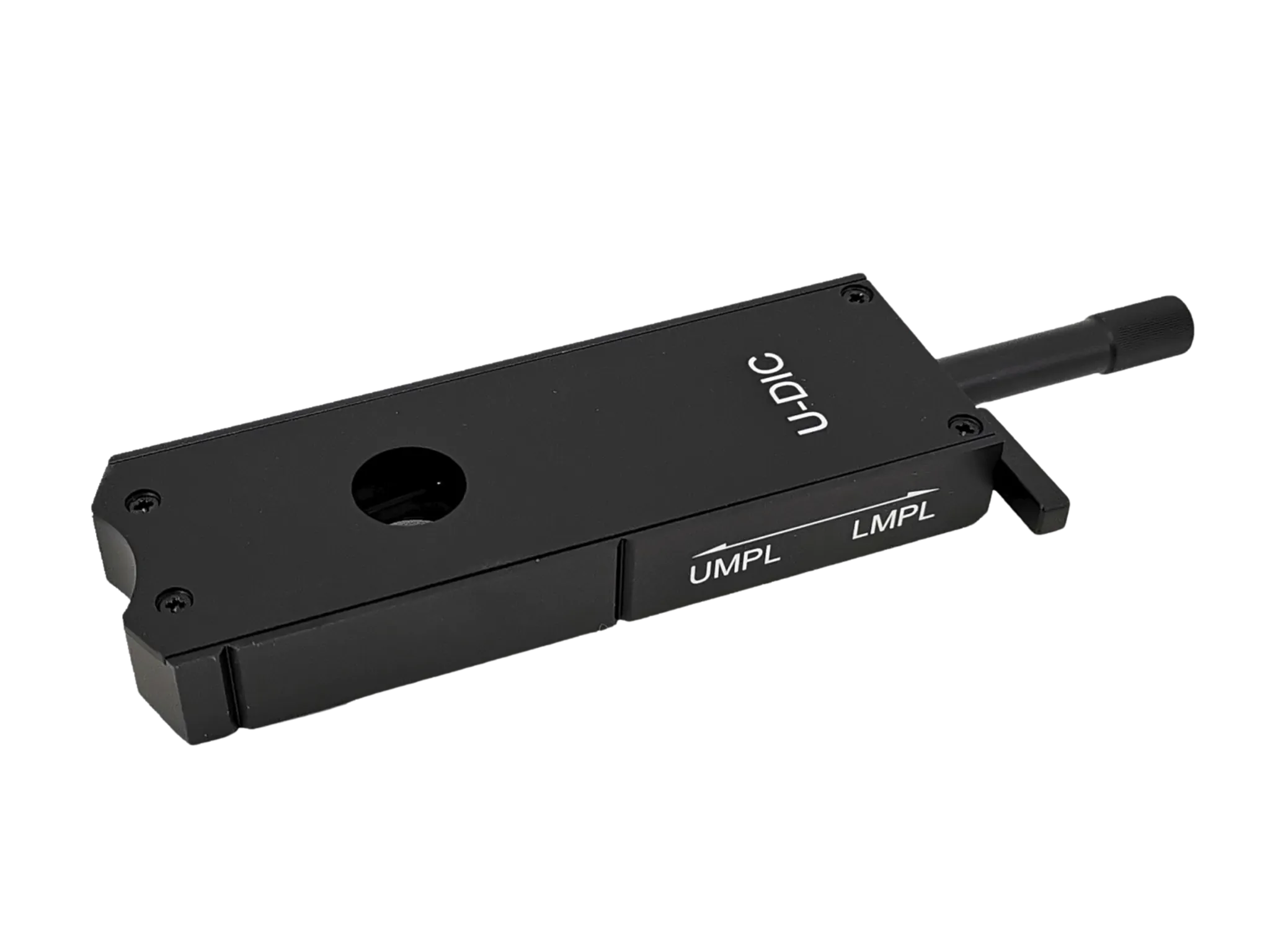

- Advanced Illumination Options: Offers brightfield, darkfield, polarized light & differential interference contrast (DIC).
- Wide Field Eyepiece: Provides a wide field of view with WF10X eyepiece.
- Premium LM Plan S-APO Objectives: Infinity-corrected, long-working-distance, plan-corrected, superapochromatic objectives.
- Plan-Planar Field Correction: Ensures a flat, distortion free image across the entire field of view.
Technical Specifications - IM-7000
| Feature | Specifications |
|---|---|
| Eyepiece | Wide field WF 10X (field no. 22 mm) |
| Objectives |

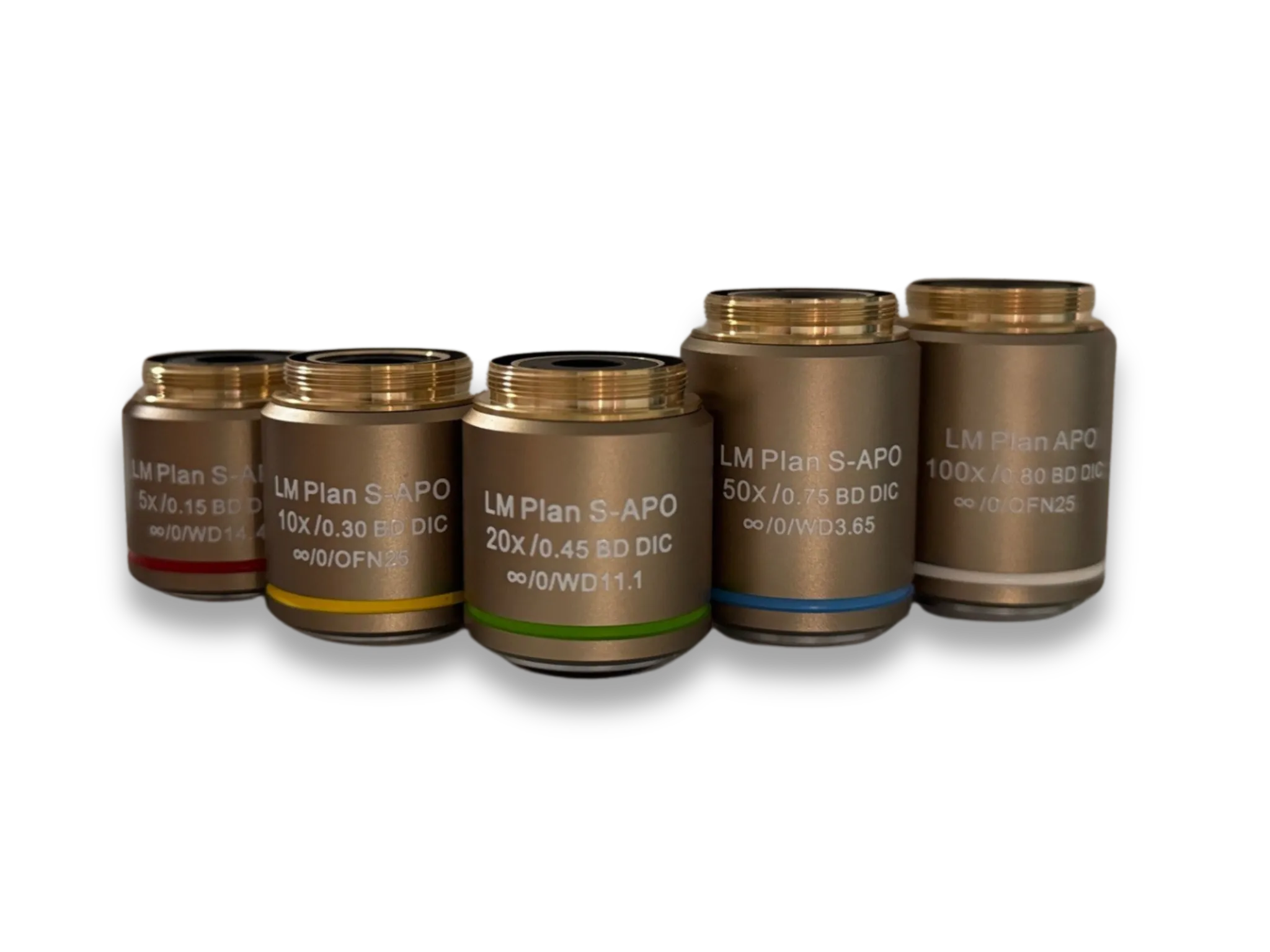

LM Plan S-APO 5X/0.15 (working distance 14.4 mm) LM Plan S-APO 10X/0.30 (working distance 12.1 mm) LM Plan S-APO 20X/0.45 (working distance 11.1 mm) LM Plan S-APO 50X/0.75 (working distance 3.65 mm) LM Plan S-APO 100X/0.80 (working distance 3.2 mm) |
| Trinocular Head |
30 degree inclination ratio 360° rotatable |
| Focusing System |
Coaxial coarse and fine focusing (1 micron) Fine focus travel per revolution (0.1 mm) Coarse focus travel per revolution (34 mm) |
| Nosepiece | Quintuple |
| Mechanical Stage |
X-Y stage Travel range: 1.9 x 1.9-inches (50 x 50 mm) |
| Illumination | Köhler illumination, 10W LED output equivalent to 100W halogen lamp |
| Catalog Number | IM-7000 |
