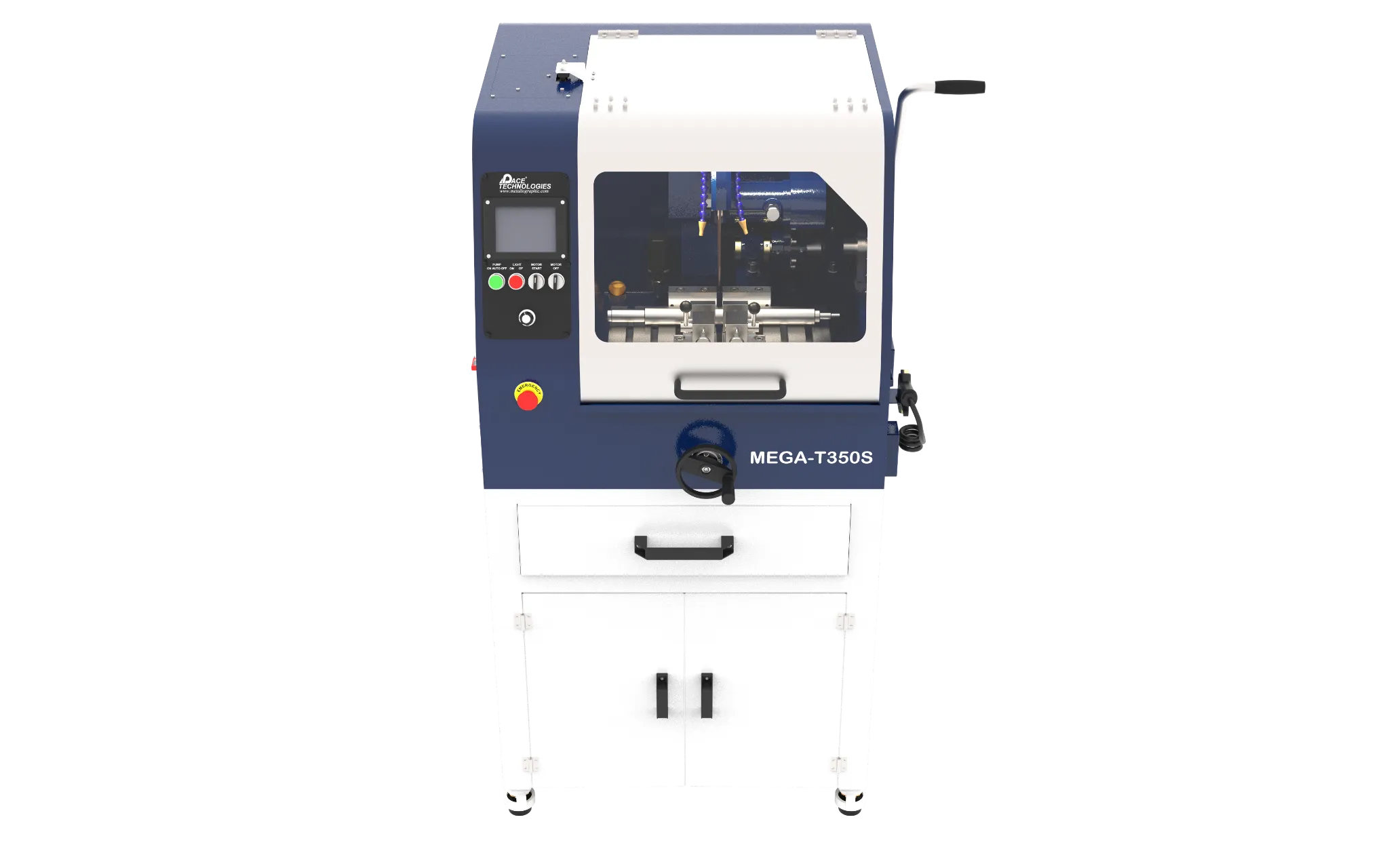

MEGA-T350S Manual Abrasive Cutter
The MEGA-T350S is a reliable manual abrasive cutter built for precision in metallographic applications. Its manual controls enable meticulous accuracy. With a durable design, it ensures long-lasting performance in demanding environments.
Features
- Manual Operation: Provides precise control over the cutting process.
- Intuitive Screen Controls: Simplifies operation without unnecessary complexities.
- Rugged Construction: Built for durability and long-term reliability.
- Efficient Cooling System: Integrated cooling to manage heat and extend the life of cutting components.
Technical Specifications - MEGA-T350S
| Parameter | Specification |
|---|---|
| Cut-off Blade Size | 14-inch (350 mm) |
| Operation | Manual |
| Screen | Non-touch |
| Arbor Size | 32 mm |
| Cutting Capacity (H x D) | Maximum 3 x 6-inch (70 x 150 mm) |
| Max Cutting Diameter | 4.5-inch (115 mm) |
| Wheel Feed | Manual |
| Table Feed | Manual |
| Y Pulse Feed | Manual |
| Y-axis Table Feed Range | 7-inch (180 mm) |
| X-axis Table Feed | n.a. |
| Vertical Movement (Z-axis) | 3-inch (75 mm) |
| T-slotted Table Dimensions | 28 x 16-inch (710 x 400 mm) |
| T-slotted Width | 0.5-inch (50 mm) |
| Cooling Unit | 14 gallons (53 liters) |
| Motor Power | Constant torque variable speed Servo Motor, 3φ - 4.5 KW/(5.8 hp) 208Y, 380Y, 480V - 15 KW (20 hp) 480V |
| Motor Speed | Variable (1000-3000 rpm) |
| Cutting Force (Current Settings) | 3-15 amps (208Y/380V), 5-25 amps (480V) |
| Electrical Specification | 208Y / 380V or 480V 3-phase (50/60 Hz) |
| Dimensions (WxDxH) | Hood closed: 42 x 42 x 64-inch (1070 x 1070 x 1625 mm); Hood open: 42 x 42 x 70-inch (1070 x 1070 x 1780 mm) |
| Weight | 650-700 lbs (300-320 kg) |
| Catalog Number | MEGA-T350S |
