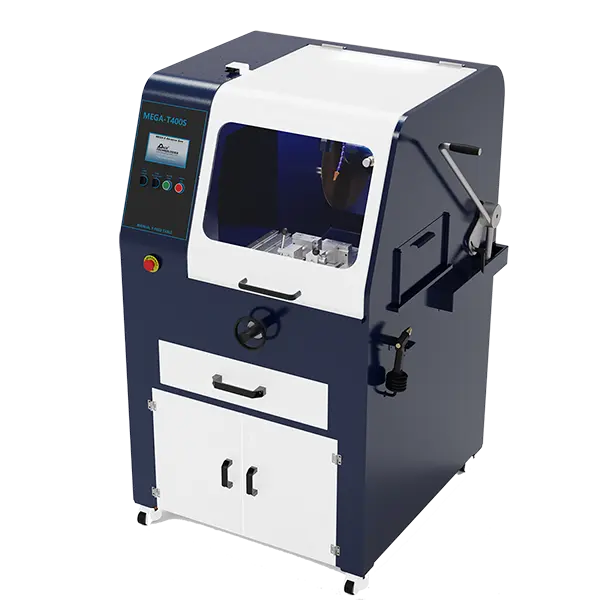

MEGA-T400S Manual Abrasive Cutter
The MEGA-T400S is a robust and reliable manual abrasive cutter designed for precision cutting in metallographic applications. With its manual operation and touch screen interface, this machine offers precise control and intuitive operation, making it ideal for applications requiring meticulous accuracy. The MEGA-T400S's sturdy construction and advanced features ensure longevity and consistent performance in demanding environments, making it a perfect choice for those who prioritize precision and control.
Features
- High precision manual cutting with minimal maintenance
- Robust design for industrial applications
- Easy operation with ergonomic controls
- Suitable for various materials including metals and ceramics
Technical Specifications - MEGA-T400S
| Parameter | Specification |
|---|---|

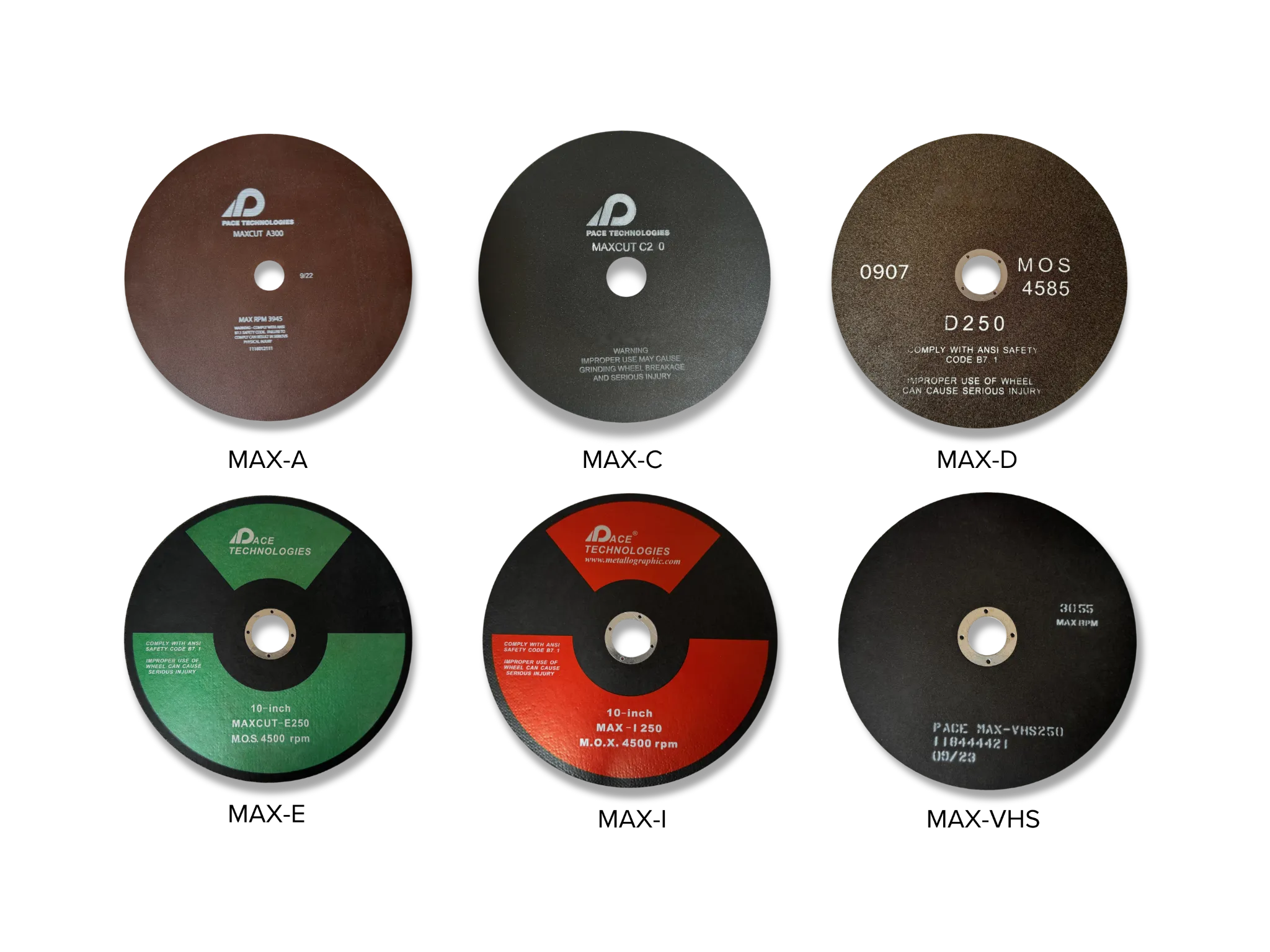

| Cut-off Blade Size | 16-inch (400 mm) |
| Operation | Manual |
| Screen | Touch |
| Arbor Size | 32 mm |
| Cutting Capacity (H x D) | Maximum 3 x 6-inch (70 x 150 mm) |
| Max Cutting Diameter | 6-inch (150 mm) |
| Wheel Feed | Manual |
| Table Feed | Manual |
| Y Pulse Feed | Manual |
| Y-axis Table Feed Range | 7-inch (180 mm) |
| X-axis Table Feed | n.a. |
| Vertical Movement (Z-axis) | 5-inch (125 mm) |
| T-slotted Table Dimensions | 11 x 18.25-inch (280 x 470 mm) |
| T-slotted Width | 0.5-inch (50 mm) |
| Cooling Unit | 14 gallons (53 liters) |
| Motor Power | Constant torque variable speed Servo Motor, 3φ - 4.5 KW/(5.8 hp) 208Y, 380Y, 480V - 15 KW (20 hp) 480V |
| Motor Speed | Variable (1000-3000 rpm) |
| Cutting Force (Current Settings) | 5-25 amps (480V) |
| Electrical Specification | 208Y / 380V or 480V 3-phase (50/60 Hz) |
| Dimensions (WxDxH) | Hood closed: 48 x 51 x 64-inch (1220 x 1300 x 1610 mm); Hood open: 48 x 51 x 66-inch (1200 x 1300 x 1700 mm) |
| Weight | 880-930 lbs (400-425 kg) |
| Catalog Number | MEGA-T400S |
