Polishing Methods

Introduction

Polishing is the stage of metallographic sample preparation that removes the scratch pattern and deformed layer left by grinding, producing a surface suitable for microstructural analysis. Proper polishing technique is essential for revealing true microstructures without introducing artifacts such as relief, contamination, or subsurface deformation.

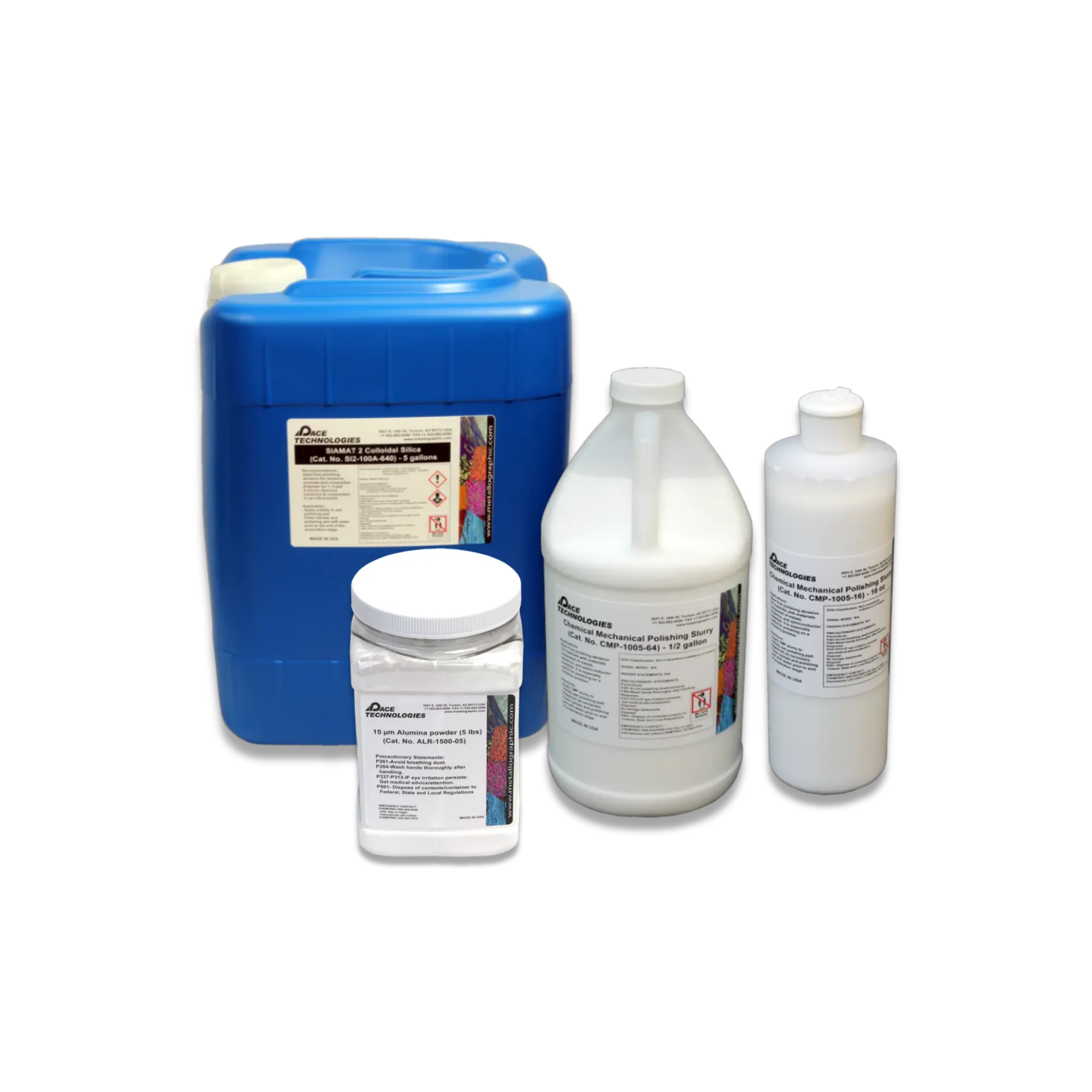

Final polishing consumables including diamond abrasives, oxide suspensions, and polishing pads. Proper selection ensures mirror-like surfaces suitable for microstructural analysis.

The polishing process typically involves multiple stages, progressing from coarse diamond abrasives to fine oxide suspensions. Each stage must be carefully executed to ensure complete removal of previous scratches while maintaining sample integrity.

Diamond Polishing

Diamond polishing is the primary method for removing grinding scratches and preparing the surface for final polishing. Diamond abrasives are available in various particle sizes and formulations to suit different materials and applications.

Polycrystalline diamond: self-sharpening action for efficient material removal

Monocrystalline diamond: uniform scratch pattern, controlled cutting

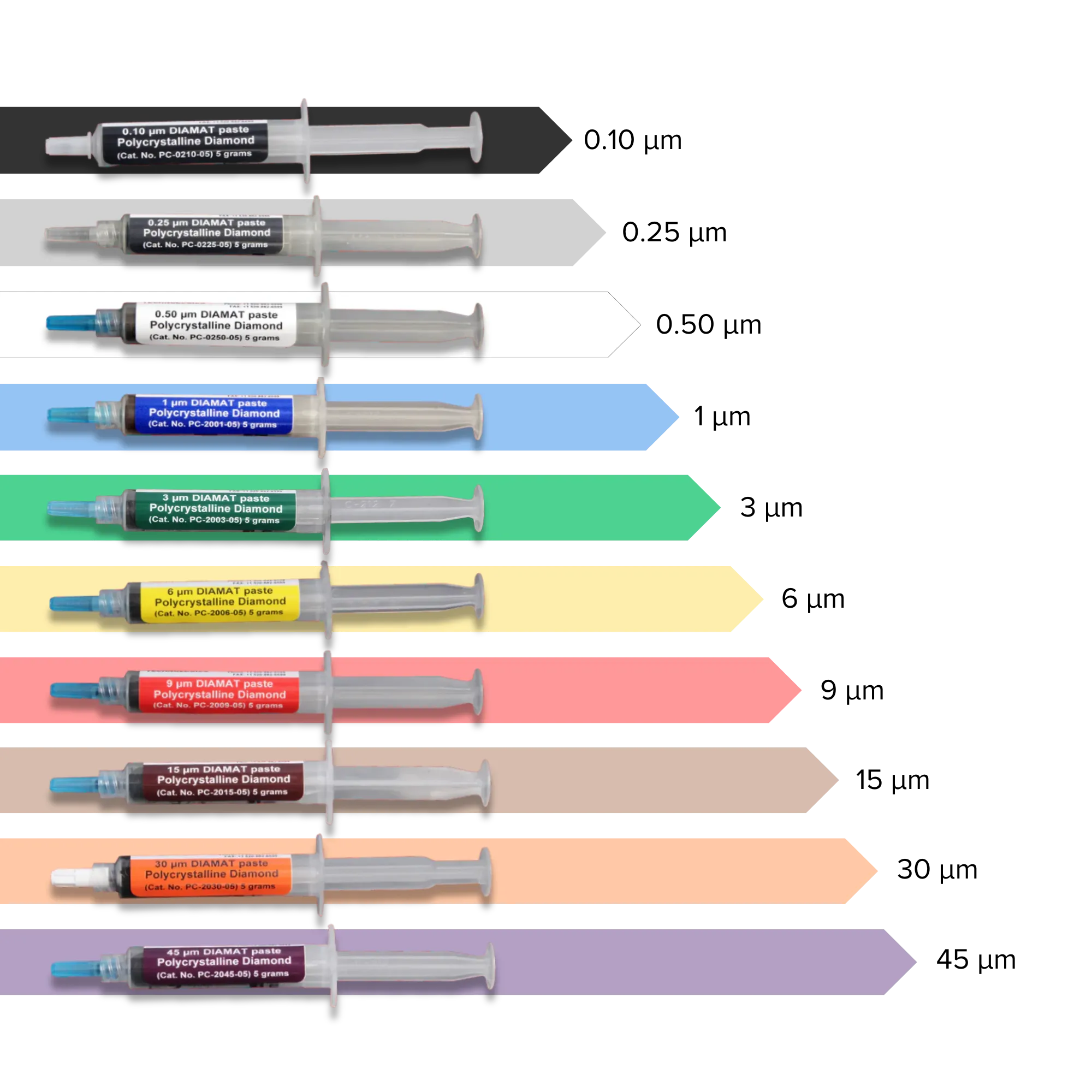

Diamond paste: grease-based for manual polishing applications

Common Diamond Polishing Sequence

The specific sequence depends on the material and the final grinding step used. A typical progression for many metals might be:

1. 6–9 μm diamond: Remove grinding scratches from the final grinding stage
2. 3 μm diamond: Further refinement
3. 1 μm diamond: Fine polishing
4. 0.25 μm diamond: Ultra-fine preparation (when required by the material or analysis method)

Polishing times vary widely depending on material hardness, sample area, applied force, and equipment. Each step should continue until scratches from the previous stage are fully removed — check under the microscope between steps rather than relying on fixed times.

Diamond Abrasive Types

• Polycrystalline Diamond: Made of many small crystallites that fracture during use, continuously exposing fresh cutting edges. This self-sharpening behavior provides efficient material removal, particularly on harder materials.
• Monocrystalline Diamond: Single-crystal structure with uniform cutting geometry that produces a finer, more consistent scratch pattern with less subsurface deformation. Often preferred for softer metals and final diamond polishing stages.
• Diamond Suspensions: Water-based or oil-based suspensions for use with semi-automated or manual polishing
• Diamond Pastes: Grease-based for manual polishing applications

For more information on diamond abrasives, visit our Polishing Consumables page.

Polishing Abrasives & Suspensions

Understanding the different types of polishing abrasives and their applications is crucial for achieving optimal results. Each abrasive type has specific characteristics that make it suitable for particular materials and polishing stages.

Diamond Abrasives

• Polycrystalline Diamond: Self-sharpening crystallites that fracture to expose new cutting edges, providing efficient removal rates
• Monocrystalline Diamond: Single-crystal structure producing uniform, consistent scratch patterns with less subsurface deformation
• Available Forms: Suspensions, pastes, sprays
• Particle Sizes: 15 μm down to 0.25 μm

Oxide Abrasives

• Alumina (Alpha): Standard alpha-phase alumina for general polishing
• Alumina (Deagglomerated): Processed to prevent agglomeration, more consistent
• Alumina (Low Viscosity): Lower viscosity for better flow and coverage
• Alumina (Polycrystalline): Multiple crystal structure for aggressive polishing
• Colloidal Alumina: Ultra-fine particles in suspension, excellent for final polishing
• Colloidal Silica: Very fine silica particles, produces mirror-like finishes
• Cerium Oxide: Effective for glass and some ceramics
• CMP Alumina Silica: Chemical-mechanical polishing blend

For more information on final polishing abrasives, visit our Polishing Consumables page.

Polishing Cloths & Pads

The choice of polishing pad significantly affects polishing results. Different pad types provide varying levels of hardness, nap, and cutting action. Selecting the appropriate pad for each polishing stage is essential.

Various polishing pads and cloths for different polishing stages. Pad selection affects hardness, nap, and cutting action - choose based on material and polishing stage.

Polishing Pad (PSA) Selection Guideline

For more information on polishing pads, visit our Polishing Pads page.

Oxide Polishing

Oxide polishing follows diamond polishing and removes fine scratches while producing a high-quality surface finish. Oxide abrasives are typically used in the final polishing stages.

Oxide Polishing Approaches

Oxide polishing can follow different paths depending on the material and the quality of the preceding diamond polish:

• Alumina then colloidal silica: A traditional two-step approach — 0.3 μm alumina to remove fine diamond scratches, followed by 0.05 μm colloidal silica for a mirror finish
• Colloidal silica only: Many modern procedures go directly from 1 μm diamond to colloidal silica, which is often sufficient and reduces the number of steps
• Specialized oxides: Cerium oxide for glass and some ceramics, CMP alumina-silica blends for chemo-mechanical polishing

Oxide Selection Guidelines

• Standard Alumina: General purpose, most materials
• Deagglomerated Alumina: When consistency is critical
• Colloidal Silica: For ultra-fine finishes, minimal relief
• Low Viscosity Alumina: For better coverage and flow
• Cerium Oxide: Specialized for glass and ceramics

Important: Always use fresh oxide suspensions and clean the sample thoroughly between diamond and oxide polishing to prevent contamination.

Final Polishing

Final polishing produces the mirror-like surface required for high-quality microstructural analysis. This stage requires careful attention to detail and appropriate selection of abrasives and cloths.

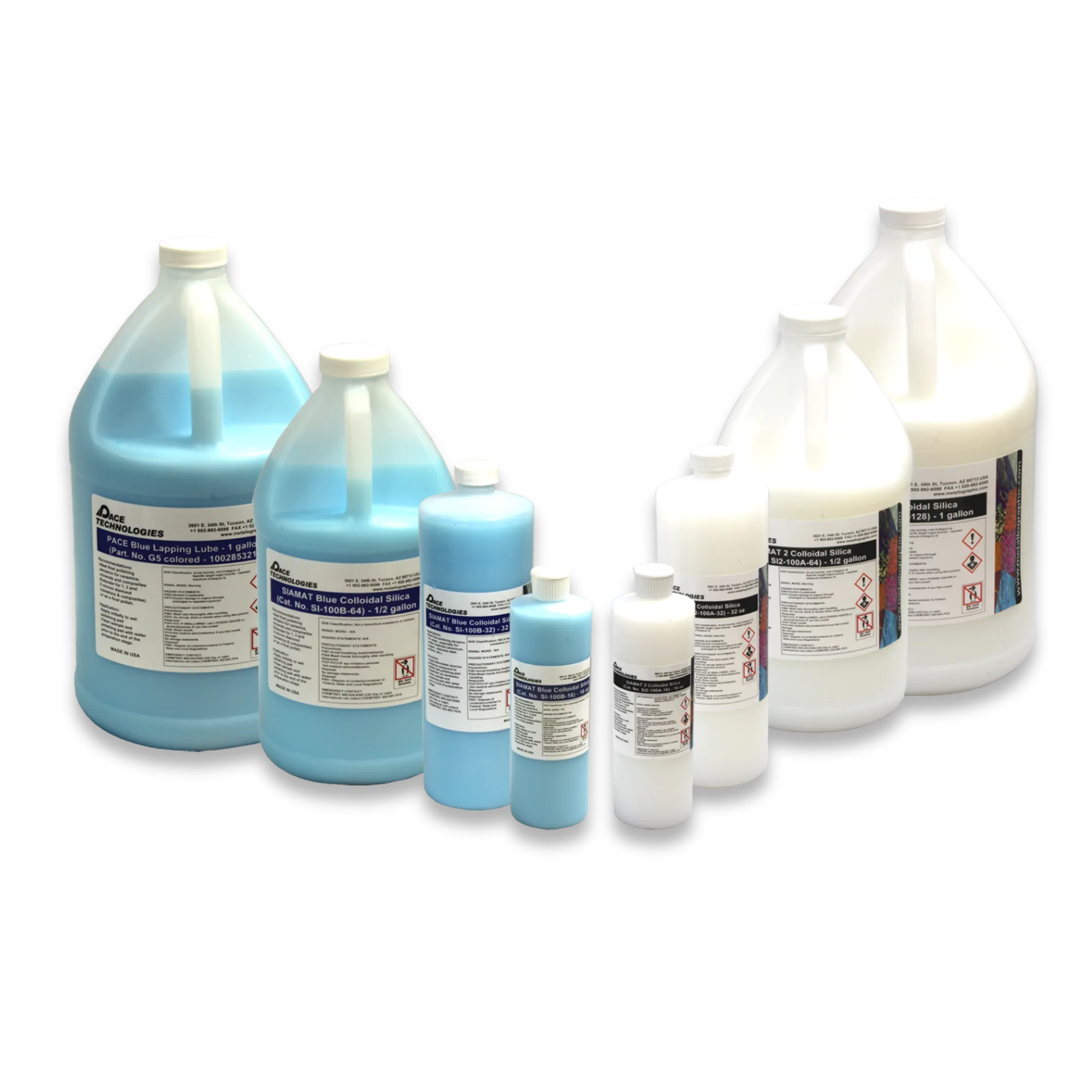

Colloidal silica (0.05 μm) is the most common final polishing abrasive, producing excellent mirror-like finishes with minimal relief.

Result of proper final polishing - 431 Stainless steel, 400X. The mirror-like surface reveals true microstructure without artifacts.

Final Polishing Techniques

• Select the cloth nap based on material — low-nap for hard materials where flatness is critical, higher-nap for soft metals where scratch removal is difficult
• Use lighter force than in diamond polishing stages — the goal is surface refinement, not material removal
• Use fresh, high-quality oxide suspensions and keep the pad adequately wet
• Polish only until previous scratches are removed — extended polishing introduces relief and edge rounding
• Clean the sample thoroughly after polishing to remove all residual abrasive and suspension

Final Polishing Abrasives

• Colloidal Silica (0.05 μm): Most common, produces excellent finishes
• Colloidal Alumina (0.05 μm): Alternative to silica, with a different mechanical-chemical action suited to certain materials
• Deagglomerated Alumina: For consistent, uniform polishing
• Low Viscosity Alumina: Better flow and coverage

For more information on final polishing abrasives, visit our Polishing Consumables page.

Vibratory Polishing

Vibratory polishing is an effective method for final polishing that significantly reduces subsurface deformation and produces superior surface finishes. This method is particularly effective for EBSD sample preparation and applications requiring minimal deformation.

Advantages of Vibratory Polishing

• Very effective at removing the subsurface deformation layer left by mechanical polishing
• Produces superior flatness and planarity compared to manual final polishing
• Reduces operator variability — the process runs unattended
• Well-suited for batch processing multiple samples simultaneously
• Pulse mode helps prevent staining from prolonged contact with suspensions

Vibratory Polishing Process

1. Prepare sample through standard grinding and initial polishing
2. Select appropriate polishing bowl size (9" or 12")
3. Add polishing suspension to bowl
4. Set frequency and power for desired polishing rate
5. Place samples in bowl and allow polishing
6. Monitor progress and adjust as needed

Applications

• EBSD sample preparation
• Final polishing for high-quality microstructural analysis
• Batch processing multiple samples
• Applications requiring minimal deformation

Recommended Equipment: GIGA-S Vibratory Polisher

The GIGA-S vibratory polisher ensures superior surface finishes with precise vibration control and interchangeable polishing bowls. An effective, hands-off solution for final polishing and subsurface deformation removal.

View GIGA-S Vibratory Polisher →

Material-Specific Polishing Techniques

Hard Materials (Hardened Steels, Ceramics)

• Polycrystalline diamond is often preferred for its self-sharpening cutting action
• Longer polishing times are typically needed compared to softer materials
• These materials generally tolerate higher applied force without deformation

Soft Materials (Aluminum, Copper, Lead)

• Monocrystalline diamond is often preferred for its uniform scratch pattern and reduced subsurface deformation
• The primary challenges are smearing, embedded abrasive, and pull-out — not just scratch removal
• Use lower force and shorter polishing times to limit deformation
• Attack polishing (adding a dilute etchant to the polishing suspension) is often necessary to remove the smeared layer and reveal true microstructure
• Clean thoroughly between steps — soft metals are more susceptible to embedded abrasive carryover

Work-Hardening Materials (Austenitic Stainless Steels, Nickel Alloys)

• Mechanical polishing introduces a deformation layer that can be difficult to remove with further mechanical polishing alone
• Extended vibratory polishing with colloidal silica is often effective at removing this deformed layer
• Attack polishing or electrolytic polishing may also be needed, depending on the analysis requirements
• For EBSD preparation, vibratory polishing is typically essential to achieve adequate pattern quality

Multi-Phase Materials

• Use harder, lower-nap cloths to maintain planarity across phases
• Keep polishing times short — soft phases remove faster than hard phases, and extended polishing increases relief
• Monitor for differential relief between phases at each stage
• Vibratory polishing with colloidal silica can help reduce relief in the final stage

Troubleshooting Common Issues

Proper polishing technique prevents relief and surface defects. This image shows how correct polishing maintains inclusion integrity without creating artifacts around different phases.

Scratches Not Removing

• Insufficient polishing time at current stage
• Grit progression too aggressive (skipped sizes)
• Cloth too hard or too soft for current stage
• Insufficient or contaminated abrasive

Relief Around Inclusions or Phases

• Over-polishing - reduce polishing time
• Cloth too soft - use harder cloth
• Pressure too high - reduce pressure
• Consider vibratory polishing for final stage

Contamination

• Not cleaning sample between stages
• Using contaminated abrasives or cloths
• Cross-contamination from previous steps
• Dirty polishing equipment

Poor Surface Quality

• Incomplete removal of previous scratches
• Inappropriate cloth selection
• Incorrect abrasive type or size
• Insufficient polishing time

Over-Polishing (Relief, Edge Rounding)

• Excessive polishing time — stop as soon as the previous scratch pattern is removed
• Cloth too soft for the material — soft cloths conform to topography and preferentially remove softer phases
• Too many polishing steps or repeating steps unnecessarily

Smearing or Deformation

• Applied force too high for the material
• Dull or worn polishing pad not cutting effectively
• Insufficient abrasive on the pad surface
• Common in soft metals — may require attack polishing to resolve
