MEGA-T300A Automated Abrasive Cutter
The MEGA-T300A Abrasive Saw offers flexible cutting with automatic and manual modes. Its 12-inch blade and 15 kW servo motor power high-efficiency operations. Automatic Y and optional X-axis feeds ensure precise, rapid cuts—perfect for industrial material analysis.
Features
- Automatic and manual operation for flexible cutting control

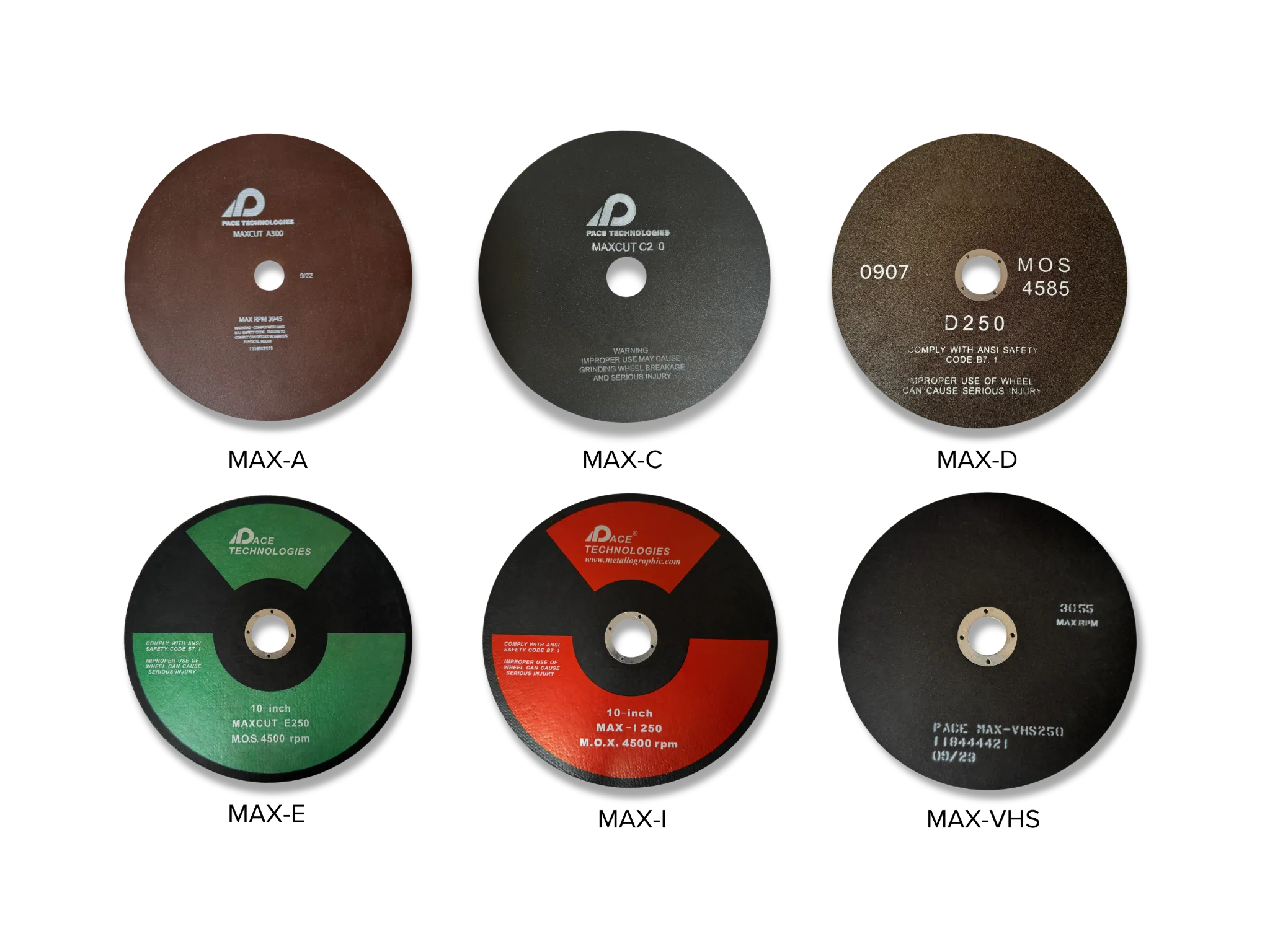

- Includes a 12-inch (305 mm) blade suitable for various materials
- High-powered 15 kW servo motor for enhanced cutting capability
- Automatic Y and optional X-axis table feed for precision and speed
- Consistent cutting with adjustable feed rates and cutting forces
Technical Specifications - MEGA-T300A
| Parameter | Specification |
|---|---|
| Cut-off Blade Size | 12-inch (305 mm) |
| Operation | Auto / Manual |
| Screen | Non-touch |
| Arbor Size | 32 mm |
| Cutting Capacity (H x D) | Maximum 3 x 8-inch (70 x 200 mm) |
| Max Cutting Diameter | 4-inch (100 mm) |
| Wheel Feed | Manual |
| Table Feed | Auto / Manual |
| Y Pulse Feed | Auto |
| Y-axis Table Feed Range | 7-inch (180 mm) |
| Y-axis Feed Speed (Feed Rate) | 0.04 to 0.20-inch/second (1-10 mm/second) |
| X-axis Table Feed Range (Optional) | 1.8-inch (45 mm) |
| X-axis Feed Speed (Feed Rate) (Optional) | 0.04 to 0.07-inch/second (1-2 mm/second) |
| Vertical Movement (Z-axis) | 7-inch (175 mm) |
| T-slotted Table Dimensions | 11 x 18.25-inch (280 x 470 mm) |
| T-slotted Width | 0.5-inch (50 mm) |
| Cooling Unit | 14 gallons (53 liters) |
| Motor Power | Constant torque variable speed Servo Motor, 3φ - 4.5 KW/(5.8 hp) 208Y, 380Y, 480V - 15 KW (20 hp) 480V |
| Motor Speed | Variable (1500-3500 rpm) |
| Cutting Force (Current Settings) | 3-15 amps (208Y/380V), 5-25 amps (480V) |
| Electrical Specification | 208Y / 380V or 480V 3-phase (50/60 Hz) |

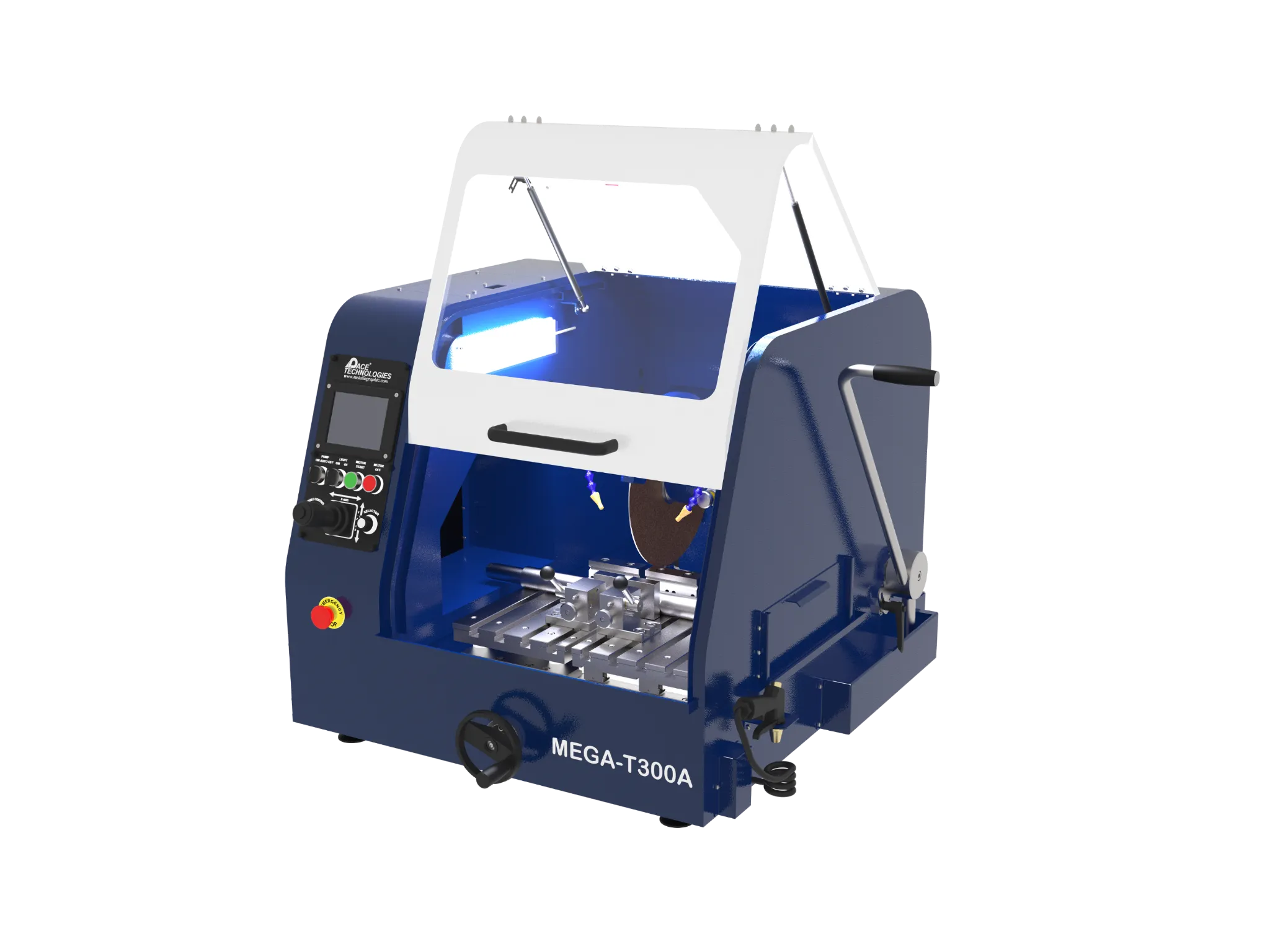

| Dimensions (WxDxH) | Hood closed: 42 x 42 x 30-inch (1070 x 1070 x 760 mm); Hood open: 42 x 42 x 36-inch (1070 x 1070 x 930 mm) |
| Weight | 500-550 lbs (230-250 kg) |
| Cutter Support Bench (Optional) | MEGA-T3-BENCH |
| Catalog Number | MEGA-T300A |
