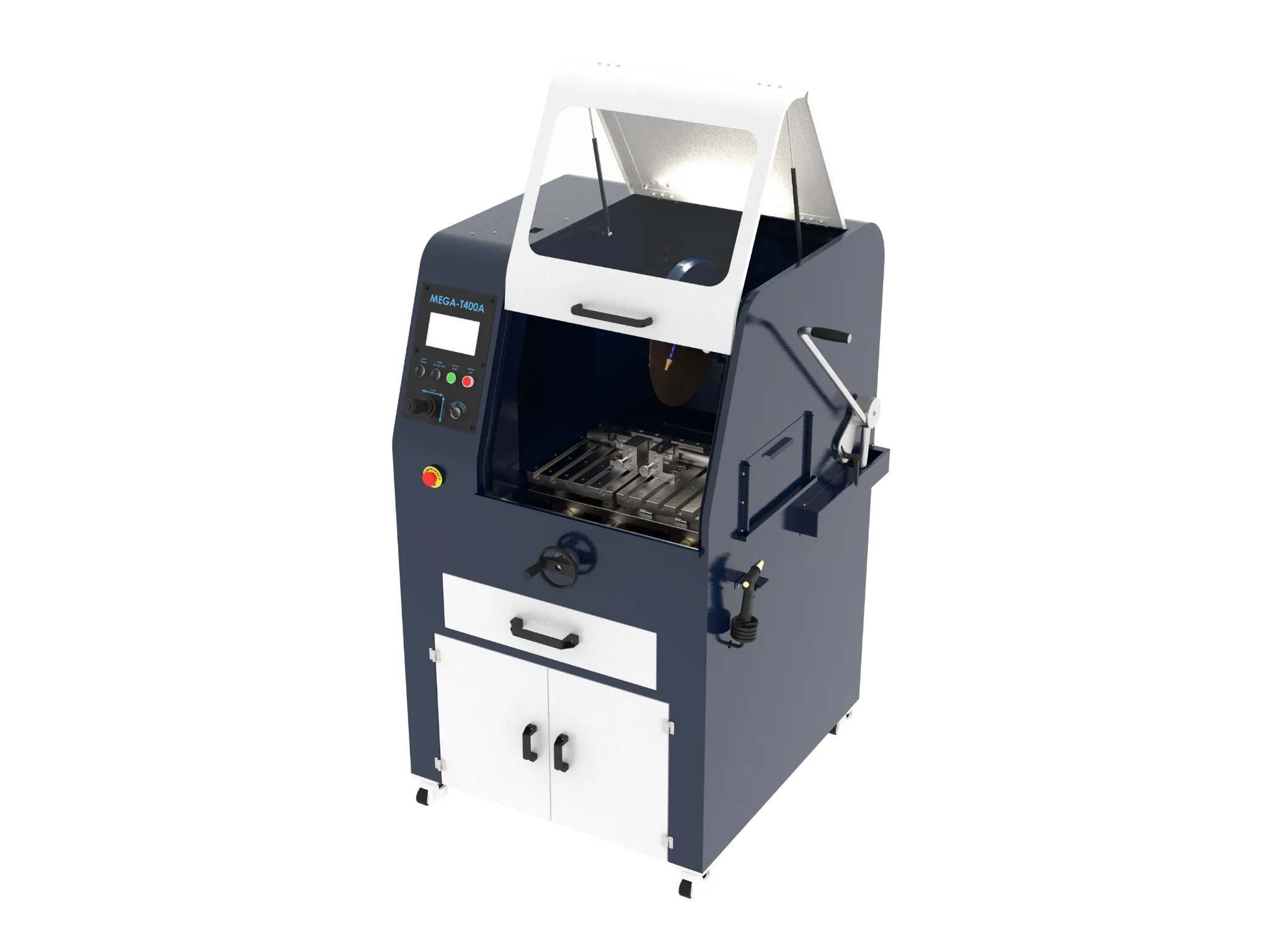

MEGA-T400A Automated Abrasive Cutter
Item ID: MEGA-T400A
A 16-inch automated abrasive cutter with a touch screen interface for streamlined, high-precision operation. Its dual auto/manual modes and robust construction suit the most demanding industrial sectioning tasks.
Features
- High precision automated cutting with minimal maintenance
- Robust design for industrial applications
- Easy operation with ergonomic controls and touch screen interface
- Suitable for various materials including metals and ceramics
Technical Specifications
| Parameter | Specification |
|---|---|
| Cut-off Blade Size | 16-inch (400 mm) |
| Operation | Auto / Manual |
| Screen | Touch |
| Arbor Size | 32 mm |
| Cutting Capacity (H x D) | Maximum 3 x 6-inch (75 x 150 mm) |
| Max Cutting Diameter | 6-inch (150 mm) |
| Wheel Feed | Manual |
| Table Feed | Auto / Manual |
| Y Pulse Feed | Auto |
| Y-axis Table Feed Range | 5.9-inch (150 mm) |
| Y-axis Feed Speed (Feed Rate) | 0.04 to 0.20-inch/second (1-10 mm/second) |
| X-axis Table Feed Range (Optional) | 1.05-inch (26.7 mm) |
| X-axis Feed Speed (Feed Rate) (Optional) | 0.04 to 0.07-inch/second (1-2 mm/second) |
| Vertical Movement (Z-axis) | 5-inch (125 mm) |
| T-slotted Table Dimensions | 11 x 18.25-inch (280 x 470 mm) |
| T-slotted Width | 0.5-inch (50 mm) |
| Cooling Unit | 14 gallons (53 liters) |
| Motor Power | Constant torque variable speed Servo Motor, 3φ - 4.5 KW/(5.8 hp) 208Y, 380Y, 480V - 15 KW (20 hp) 480V |
| Motor Speed | Variable (1000-3000 rpm) |
| Cutting Force (Current Settings) | 5-25 amps (480V) |
| Electrical Specification | 208Y / 380V or 480V 3-phase (50/60 Hz) |
| Dimensions (WxDxH) | Hood closed: 48 x 51 x 64-inch (1220 x 1300 x 1610 mm); Hood open: 48 x 51 x 66-inch (1200 x 1300 x 1700 mm) |
| Weight | 880 lbs (400 kg) |
| Catalog Number | MEGA-T400A |
