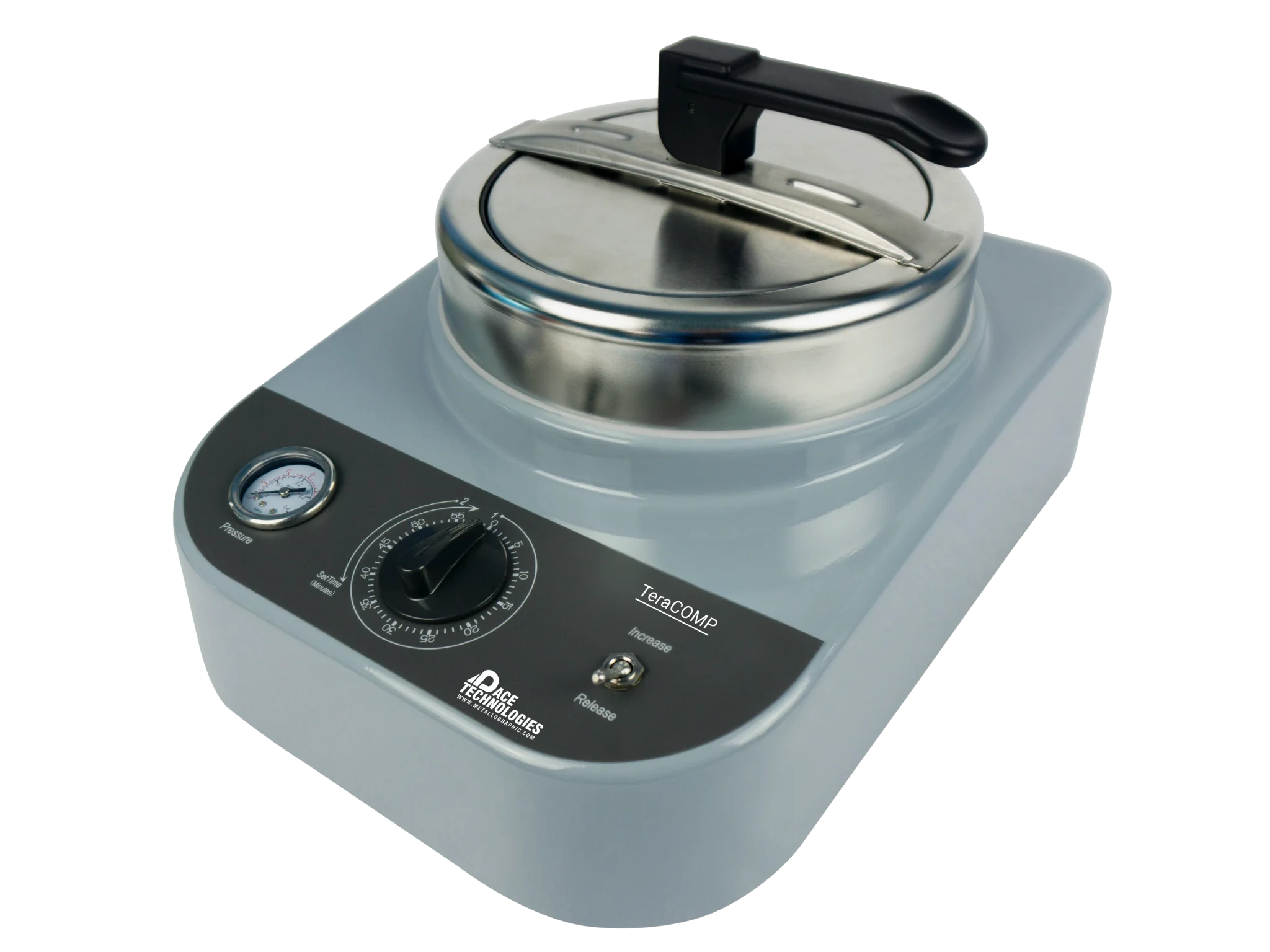

TeraCOMP Pressure Mounting Machine
Item ID: TeraCOMP
A pressure-based castable mounting system for consistent, high-quality sample preparation. Compatible with a range of mount sizes and materials for demanding metallographic applications.
Features
- Precision pressure control for consistent mounting results
- Compatible with a range of mount sizes and materials
- Robust construction for demanding lab environments
- Intuitive controls with clear user feedback
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | 2.0 bar |

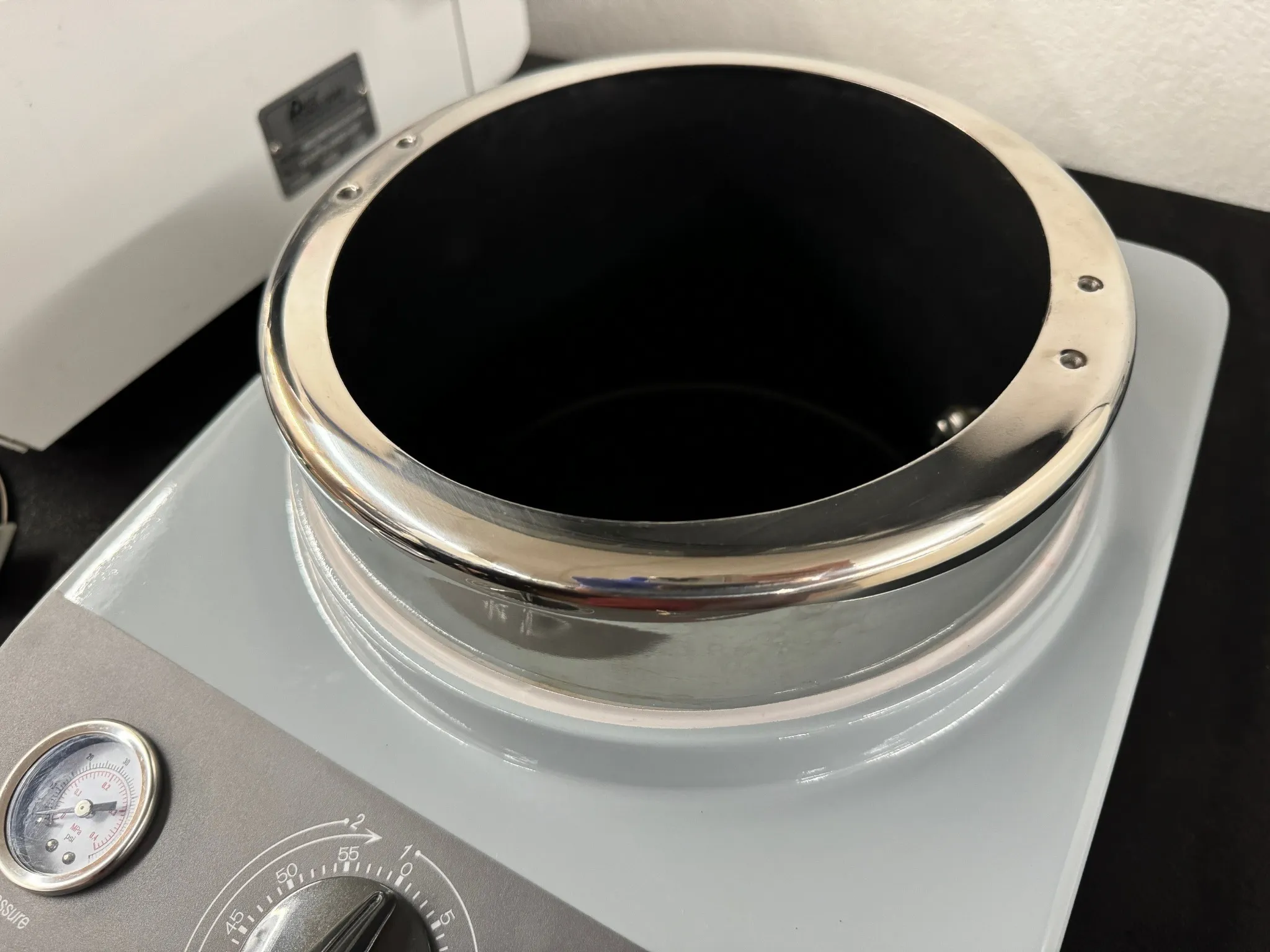

| Chamber Diameter | 9.3 x 6.7-inch (235 x 170mm) |
| Safety Valve Overflow Pressure | 2.8～3.3 bar |
| Dimensions (WxDxH) - Closed | 12.1 x 16.3 x 11.4-inch (308 x 415 x 289mm) |
| Dimensions (WxDxH) - Open | 12.1 x 16.3 x 13.5-inch (308 x 415 x 342mm) |
| Weight | 18.8 lbs (8.5kg) |
