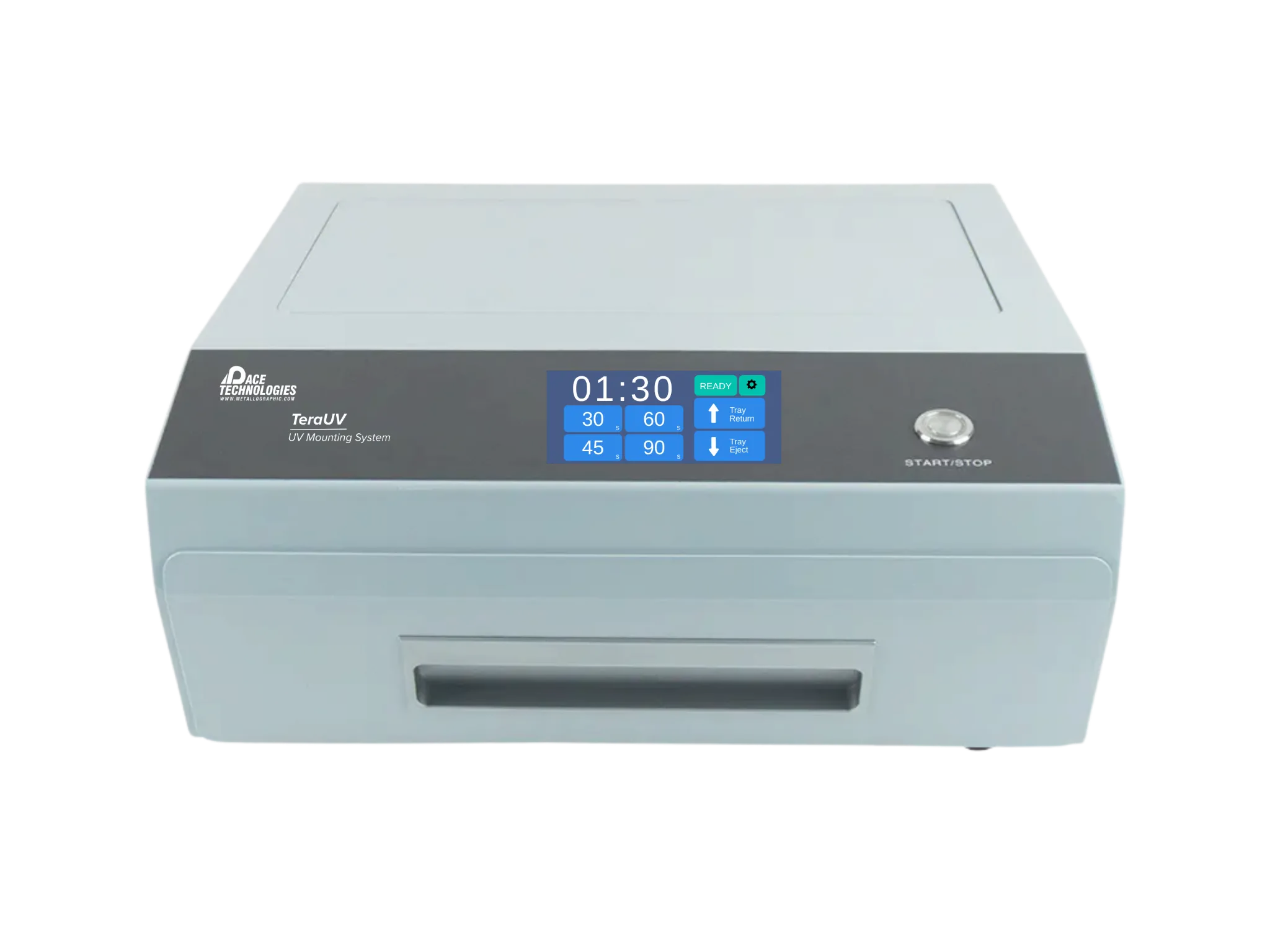

TeraUV UV Mounting Curing System
Item ID: TeraUV
A UV curing system for fast, reliable mounting with strong adhesion and minimal shrinkage. Delivers quick turnaround and consistent results for metallographic sample preparation.
Features
- UV curing with strong adhesion and minimal shrinkage
- Fast processing for rapid sample turnaround
- Uniform curing for consistent, high-quality mounts
- Simple controls for easy operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample Tray Total Dimension | 11.5 x 9.1-inch (291 x 230 mm) |
| Sample Tray Max. Height | 2-inch (50 mm) |
| UV Curing Time | 0-999 secs |
| UV Light Wavelength | 365nm |
| Dimensions (WxDxH) | Closed: 15.7 x 15.9 x 7.6-inch (400 x 405 x 195 mm) / Open: 15.7 x 25.1 x 7.6-inch (400 x 639 x 195 mm) |
| Voltage/Frequency | 85-240V, 50/60Hz (1Ph/N/PE) |
| Weight | 46 lbs (21 kg) |
