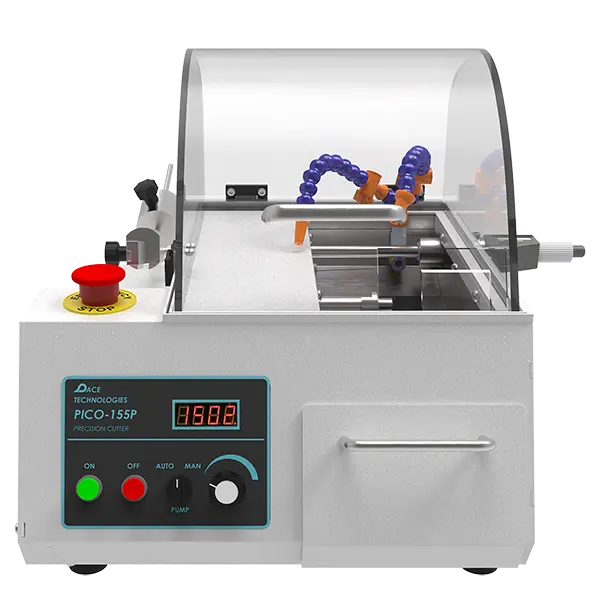

PICO-155P Precision Wafering Saw
Item ID: PICO-155P
An analog-controlled precision wafering saw with 2-inch cutting capacity and 2-micron micrometer feed accuracy. Variable speed (200-1500 rpm) and dual nozzle cooling deliver reliable, repeatable cuts.
Features
- Intuitive analog controls for precise manual operation

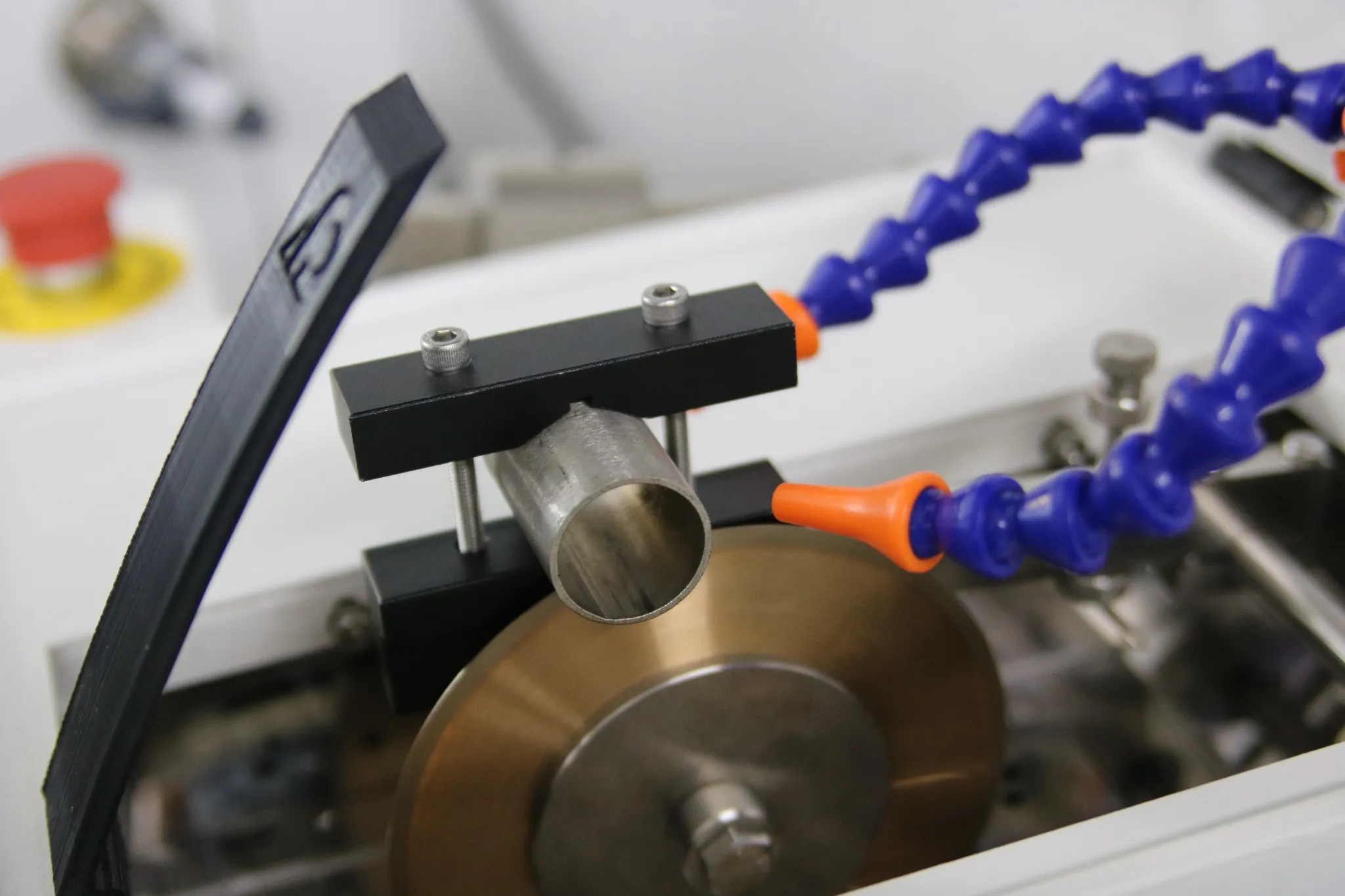

- Dual nozzle coolant system for optimal cutting conditions
- Variable speed (200-1500 rpm) with LED display
- Micrometer precision with accuracy of 2 microns
Technical Specifications
| Parameter | Specification |
|---|---|
| Control | Analog Buttons and Speed Control |
| Cutting Capacity | Max. diameter 50 mm (2 inches) |
| Coolant System | Dual nozzle with pump |
| Wheel Size | 75 mm to 175 mm (3 to 7 inches) |
| Arbor Size | 12.7 mm (0.5 inches) |
| Variable Speed (RPM) | 200-1500 rpm continuously adjustable with LED speed display |
| Cutting Load | 0-1500 gram load |
| Micrometer Feed Distance | 0 to 25 mm (0 to 1 inch) |
| Micrometer Accuracy | 2 microns |
| Electrical Specification | 110V/220V (50/60 Hz) single phase |
| Motor Power | 125W (24V) |
| Dimensions (WxDxH) - Hood Closed | 480 x 580 x 370 mm (19 x 23 x 14 inches) |
| Dimensions (WxDxH) - Hood Open | 480 x 740 x 480 mm (19 x 29 x 19 inches) |
| Weight | 30 kg (66 lbs) |
| Catalog Number | PICO-155P |
