Class 2 covers the refractory metals: tungsten, molybdenum, tantalum, niobium, rhenium, hafnium, zirconium, and beryllium. These elements share extremely high melting points, relatively low ductility at room temperature, and rapid surface oxidation when freshly exposed. Despite their high melting points, many are moderately soft at room temperature (molybdenum ~250 HV, niobium ~80 HV, tantalum ~120 HV), making them susceptible to abrasive embedding during grinding. Their low ductility causes edge chipping and fracture rather than the smearing seen in soft ductile metals. Specialized etchants are required for each element, and beryllium presents a severe inhalation toxicity hazard requiring strict containment during all dry operations.
Preparation Characteristics & Challenges

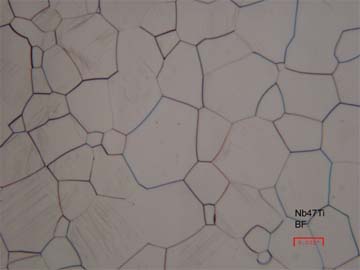

Niobium microstructure. Example of Class 2 refractory metal
Refractory metals exhibit several distinctive properties that directly impact how they must be prepared:
Abrasive Embedding
Despite their high melting points, most refractory metals are soft enough at room temperature to trap abrasive particles from SiC papers. Niobium (80 HV) and tantalum (120 HV) are particularly susceptible. Embedded particles create permanent artifacts that can be mistaken for inclusions or second-phase particles. Diamond grinding discs reduce embedding compared to conventional SiC paper. Thorough ultrasonic cleaning between every preparation step is essential to prevent carryover.
Low Ductility & Edge Chipping
Refractory metals have limited ductility at room temperature and tend to chip, crack, and fracture at edges during sectioning and grinding rather than deform plastically. Tungsten and rhenium are particularly brittle. Use moderate feed rates during sectioning, avoid coarse starting grits, and orient specimens so edges trail the grinding direction. Edge-retaining mounting compounds provide mechanical support to reduce chipping.
Rapid Surface Oxidation
Tantalum, niobium, zirconium, and hafnium form tenacious oxide layers rapidly when freshly exposed surfaces contact air. These oxides can obscure microstructural features and affect etching response. Prepare specimens promptly after polishing and etch without delay. Zirconium is especially reactive and can ignite as fine particles or thin shavings; keep water-based coolant flowing during all cutting operations.
Element-Specific Etching
No single etchant works across the class. Each refractory metal requires its own etchant: Murakami's reagent for tungsten, acid mixtures for tantalum and niobium, HF-based solutions for zirconium and hafnium, acidified hydrogen peroxide for molybdenum, and specialized acid mixtures for rhenium. Beryllium responds to dilute HF or ammonium bifluoride solutions. Etchant concentration and immersion time must be determined for each element individually.
Work Hardening
Molybdenum and tungsten work harden during aggressive grinding, creating an altered surface layer that changes the etching response and can be mistaken for heat treatment effects. Beryllium also work hardens readily. Minimize deformation at each step by using light pressure and fresh abrasives. A final vibratory polish with colloidal silica or alumina removes the work-hardened layer before etching.
Beryllium Toxicity
Beryllium dust and fumes cause chronic beryllium disease (CBD), a serious and potentially fatal lung condition. All dry operations (cutting, grinding without coolant, polishing debris) must be performed under HEPA-filtered containment. Wet cutting and grinding with continuous coolant suppress airborne particles. Follow OSHA beryllium standard (29 CFR 1910.1024). Dedicate preparation equipment to beryllium work or decontaminate thoroughly before use on other materials.
Wide Hardness Variation
The class spans a very wide hardness range. Niobium at 80 HV and tantalum at 120 HV are genuinely soft and embed abrasive aggressively. Tungsten at 350 HV and rhenium at up to 1350 HV are quite hard and resist embedding but are more prone to brittle fracture. Match grinding pressure and starting grit to the specific material rather than using a single procedure across the class.
Class 2 Materials
The following materials are classified as Class 2 (Refractory Metals). Click on any material to view its detailed preparation procedures.
Preparation Guide
Recommended Preparation Steps
Sectioning
Use low-speed precision diamond wafering saws with continuous coolant at 100-200 RPM and minimal feed pressure. These metals are brittle and chip at edges; avoid forcing the cut. For harder materials (tungsten, rhenium), CBN or diamond blades cut more efficiently than aluminum oxide. For softer refractory metals (niobium, tantalum), standard abrasive cut-off with continuous coolant is acceptable but diamond wafering produces less edge damage. Zirconium fine particles are pyrophoric; never cut dry.
Safety: Beryllium dust is a severe inhalation hazard causing chronic beryllium disease. Wet cutting with full containment is mandatory. Follow OSHA beryllium standard (29 CFR 1910.1024). Zirconium fines are pyrophoric; always use water-based coolant.
Mounting
Compression mounting is acceptable for all refractory metals, which easily tolerate the mounting temperature (150-180°C). Castable (cold) epoxy is preferred when edge preservation is needed or when preparing beryllium (to avoid generating airborne particles during hot mounting). Use edge-retaining, mineral-filled epoxy when oxide layers or surface features must be preserved for cross-sectional analysis. For porous or powdered refractory metal specimens, vacuum impregnation fills voids and provides mechanical support.
Grinding
For softer refractory metals (Nb, Ta, Be), start at 320 grit SiC or use diamond grinding discs to minimize embedding. For harder materials (W, Re, Hf), start at 240 grit. Progress through 400, 600, 800, and 1200 grit. Use light to moderate pressure (10-25 N per 30 mm sample) and contra-rotation. Thorough ultrasonic cleaning between every grit change is critical, as embedded particles from softer metals will scratch subsequent polishing surfaces. Etch briefly with the appropriate reagent between grinding steps to remove the embedded particle layer if embedding is severe.
Polishing
Use napless or low-nap cloths throughout to minimize relief and edge rounding. Polish with 6 µm then 3 µm then 1 µm diamond suspension, followed by 0.05 µm colloidal silica or colloidal alumina as a final step. Use light pressure (10-20 N) and contra-rotation. Vibratory polishing (2-6 hours with colloidal silica) as a final step is highly effective for removing the work-hardened surface layer, especially on molybdenum, tungsten, and beryllium. Colloidal alumina may be preferred over colloidal silica for contamination-sensitive applications.
Etching
Each refractory metal requires a specific etchant. Murakami's reagent (potassium ferricyanide + KOH) reveals grain boundaries in tungsten. Acidified hydrogen peroxide or Murakami's works for molybdenum. Acid mixtures (HF + HNO3 + lactic acid) are used for tantalum and niobium. HF-based solutions or Keller's-type reagents etch zirconium and hafnium. Rhenium responds to mixed acid solutions (HCl + HNO3 + acetic acid). Beryllium etches with dilute HF (1-2%) or ammonium bifluoride solution. Always work in a fume hood; HF-containing etchants require specialized PPE and calcium gluconate gel on hand for first aid.
Quality Verification
No embedded abrasive particles visible under 200x magnification
Grain boundaries etch cleanly without residual work-hardening artifacts
Edges intact without chipping or fracture from preparation
Oxide layers not obscuring microstructural features
No cross-contamination between grinding and polishing steps
